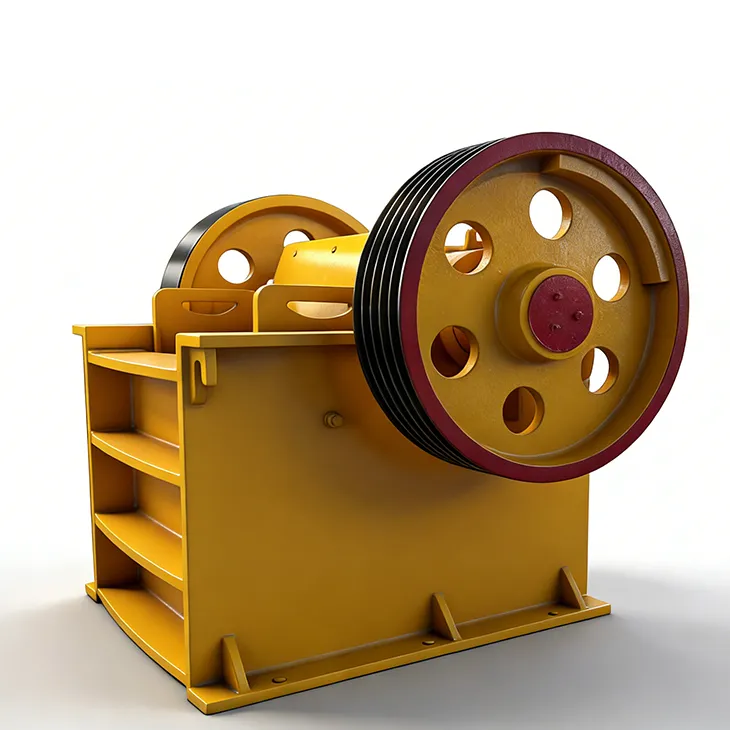

Small Jaw Crusher
Max Feed Size (mm)：300 Discharge Size (mm)：15-50
Capacity (t/h)：20-50
Power (kW)：30
Weight (T)：6.5
Send Inquiry
The Sinolion small jaw crusher is a compact primary crushing machine for low-to-medium production: it takes rocks, ores and construction waste up to 480 mm and reduces them to 8–160 mm in a single pass. Six PEX and PE models from 10 to 150 t/h cover laboratories, small-scale mining and construction waste recycling, with electric or diesel drive, reversible manganese jaw plates and an adjustable discharge opening. Factory-direct from Zhengzhou, China, with complete-line matching to suit your project.
What Is a Small Jaw Crusher?
A small jaw crusher is a primary crushing machine designed for low-to-medium production requirements. It inherits the classic structure of traditional jaw crushers - a V-shaped crushing cavity, eccentric shaft and movable/fixed jaw plates - but in a much more compact footprint with greater mobility. It is the ideal first stage for laboratories, geological exploration, small mineral processing plants and small-scale recycling operations.
Working principle: Driven by an electric motor or diesel engine, the eccentric shaft makes the movable jaw reciprocate against the fixed jaw. Material entering the V-shaped cavity is squeezed under compression exceeding its ultimate compressive strength (UCS), causing brittle fracture along natural weakness lines. When the jaw recedes, the crushed material falls by gravity into the discharge zone - the same chewing motion as an animal jaw. Because the design has few moving parts, the failure rate is low and repair is straightforward.
Small Jaw Crusher Specifications
| Model | Max Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Power (kW) | Weight (T) |
|---|---|---|---|---|---|
| PEX-150×750 | 120 | 8–25 | 10–40 | 15 | 3.5 |
| PEX-250×750 | 210 | 12–25 | 15–50 | 30 | 5.5 |
| PEX-250×1000 | 210 | 12–50 | 30–95 | 37 | 6.37 |
| PE-350×750 | 300 | 15–50 | 20–50 | 30 | 6.5 |
| PE-300×1300 | 250 | 20–90 | 45–130 | 75 | 11 |
| PE-600×900 | 480 | 65–160 | 90–150 | 75 | 17.625 |
Note: Parameters are reference values and vary with material characteristics and operating conditions - consult Sinolion engineers for your specific application.
Wear parts & maintenance: High-manganese steel fixed and movable jaw plates, side cheek plates, toggle plate and eccentric shaft bearings are the main wear components. The jaw plates have a symmetrical profile, so they can be reversed vertically to use both ends before replacement. The toggle plate is also a mechanical safety fuse - it shears to protect the frame and shaft if uncrushable tramp metal enters the cavity.
Applications of the Small Jaw Crusher
1. Laboratories & research - primary sample preparation and composition analysis of rock and ore.
2. Small-scale mining & prospecting - on-site crushing in remote areas cuts material transportation costs.
3. Construction waste recycling - crush concrete blocks, bricks, demolition rubble and asphalt into reusable aggregate.
4. Glass & ceramics - efficient processing of brittle, hard materials.
5. Small aggregate & road base production - supply graded material for local contractors and infrastructure jobs.
How to Choose the Right Small Jaw Crusher (Buying Guide)
- Feed size first. The inlet must be larger than your largest raw material - check the Max Feed Size column (120–480 mm across the PEX/PE range).
- Match capacity to real throughput. Work out your TPH requirement and pick the nearest model; an oversized crusher wastes power and capital.
- Material hardness. For granite, basalt and quartz, confirm high-manganese jaw plates - standard on all Sinolion models.
- Power source. Electric versions for indoor and fixed operations; diesel versions for remote or off-grid fieldwork.
- Fine or coarse output? PEX models (150–250 series) suit finer duties down to 8 mm discharge; PE models handle larger primary feed up to 480 mm.
- Spares & service. Keep a spare set of jaw plates and a toggle plate in stock, and confirm MOQ, delivery and warranty before ordering.
Small Jaw Crusher FAQ
Q: What materials can a small jaw crusher process?
A: Granite, basalt, quartz, limestone, river stone, concrete, asphalt, and mineral ores such as iron, copper and gold ore.
Q: How do I adjust the output particle size?
A: By changing the discharge opening gap with mechanical shims or adjustment wedges. Product gradation is fine-tuned without modifying the machine.
Q: Can the small jaw crusher run on diesel power?
A: Yes. Diesel-driven versions are available for remote mining sites, mobile operations and areas without reliable grid electricity.
Q: How long do jaw plates last, and how can I extend their life?
A: Plates are made of high-manganese alloy; service life depends on material hardness. Rotating the plates vertically before heavy wear occurs extends total service life.
Q: What is the difference between a small jaw crusher and a standard jaw crusher?
A: The same crushing principle, but a smaller footprint, lower capacity range and easier transport. Small models fit laboratories, small mines and recycling operations, while full-size jaw crushers serve large aggregate and mining plants.
Q: What is the maximum feed size?
A: Model-dependent: from 120 mm on the PEX-150×750 up to 480 mm on the PE-600×900. Match the inlet to your largest feed material.
Q: What capacity can I expect?
A: From 10–40 t/h (PEX-150×750) to 90–150 t/h (PE-600×900). Actual output depends on feed hardness, moisture and the discharge setting.
Q: Is the small jaw crusher easy to transport?
A: Yes. The compact modular frame fits standard trailers or skid platforms and requires no complex concrete foundation.
Q: Which spare parts should I keep in stock?
A: Fixed and movable jaw plates, side cheek plates, a toggle plate and eccentric shaft bearings.
Q: What about price, MOQ and delivery time?
A: Factory-direct from Zhengzhou, China. MOQ and delivery depend on the model and configuration - [confirm MOQ], [confirm delivery]. Send your material and capacity requirements via the quote form and our engineers will reply within [confirm response time].
Get a Quote for Your Crushing Project
Tell us the material you crush, the largest feed size and your target output, and the Sinolion engineering team will recommend the right model and configuration - diesel or electric, discharge setting, and matching screens or a complete crushing line. Factory-direct pricing with customization available.
