Trommel Screen

SINOLION MACHINERY is one of the most professional heavy duty compost trommel screen manufacturers in China. Please feel free to buy durable products for sale here from our factory. All machines are with high quality and competitive price.



Product Overview



An industrial trommel screen is a heavy-duty rotary drum separator engineered for continuous mechanical sizing, classification, and scalping of abrasive bulk solids, construction aggregates, and heterogeneous waste streams. The rotating inclined cylinder lifts and cascades material, allowing undersized particles to pass through replaceable perforated plates or wire mesh while oversized material discharges continuously from the drum end. Built for continuous heavy-duty operational cycles, these units feature structural steel box-section frames, spherical roller trunnion bearings, and modular wear plates designed to withstand severe impact from hard rock, demolition rubble, and high-moisture organic feed.




  • Compost Trommel Screen Machine
    Compost Trommel Screen Machine

    The Sinolion WTS series compost trommel screen machine grades cured compost into clean, saleable fines in a single pass, removing plastics, stones and undecomposed oversize. Four models from WTS0818
    Add to Inquiry
  • Portable Compost Trommel Screen Plant
    Portable Compost Trommel Screen Plant

    Precision-Composting Demands Precision EquipmentMature compost requires months of controlled biodegradation. The critical final step? Grade-specific separation where our portable trommel excels.
    Add to Inquiry
  • Small Soil Trommel Sieve
    Small Soil Trommel Sieve

    Tired of hand-sifting soil and compost? Our small soil trommel sieve screens up to 15 m³/h with a tool-free removable drum — wet soil or dry. Nursery, farm and landscaping tested. Get a factory quote
    Add to Inquiry
  • Manufacturer Direct Sales topsoil Trommel Screen
    Manufacturer Direct Sales topsoil Trommel Screen

    When processing bulk materials like organic topsoil, compost, and mulch, achieving a clean, fine end-product requires reliable separation technology. A topsoil trommel screen (rotary screening
    Add to Inquiry

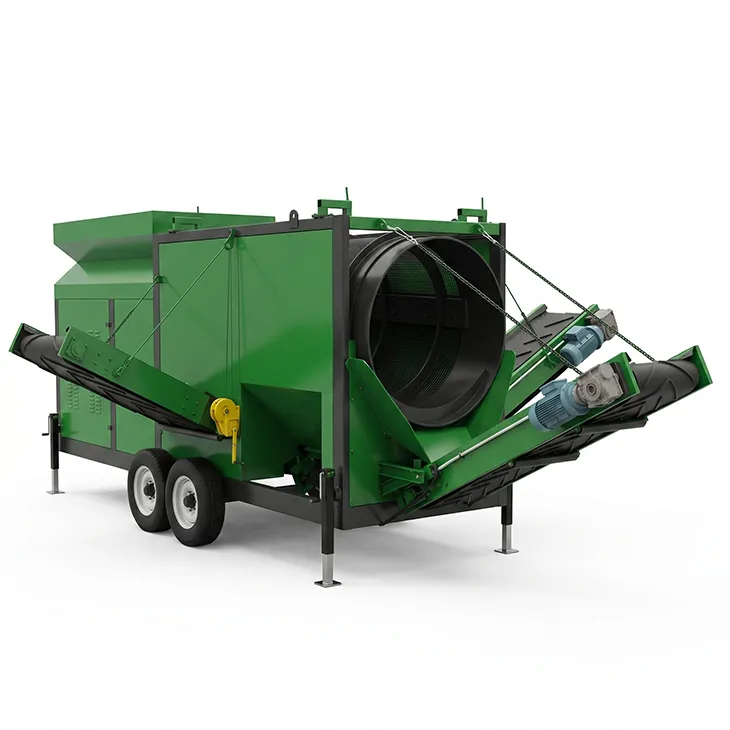

  • Mobile Trommel Screen WTS1230
    Mobile Trommel Screen WTS1230

    Mobile Trommel Screen MTS1230: Efficient and Durable Solution for Your Needs
    Add to Inquiry
  • Mobile Trommel Machine
    Mobile Trommel Machine

    Portable trommel screens are very useful tools for contractors and landscapers. These machines are also referred to as trommel drums or drum screeners. The soil generated from job sites and
    Add to Inquiry
  • SINOTECH WTS1560 Electric Trommel Screen
    SINOTECH WTS1560 Electric Trommel Screen

    Heavy-Duty Compost Trommel Screen WTS1560 | High-Capacity Mulch Screener
    Add to Inquiry
  • Recycled Trommel Screens
    Recycled Trommel Screens

    Production of recycled trommel screens The recycled trommel screen provides efficient separation for various material types. This is a cylindrical drum with many holes of a given size, and these
    Add to Inquiry
  • WTS1550 Mobile Trommel Screen
    WTS1550 Mobile Trommel Screen

    Trommel Diameter (mm) : ∅1500Trommel Length (mm) : 5000Capacity Reference Range (ft³/h) : 1413-3887Transport Dimensions (Excluding Towing Parts) (mm) : 8400*2480*2500Working Dimensions (Excluding
    Add to Inquiry
  • Heavy Duty Portable Soil Trommel Screen
    Heavy Duty Portable Soil Trommel Screen

    The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as
    Add to Inquiry
  • Municipal Waste Sorting Machine
    Municipal Waste Sorting Machine

    Our designed sorting line is a sophisticated system equipped with advanced machinery and technology. It can process a wide range of waste materials, including the construction and household waste
    Add to Inquiry
  • Portable Topsoil Screener
    Portable Topsoil Screener

    Portable Topsoil Screener is well known for its large processing capacity of compound fertilizer. And it is also a good choice for the classification of refractory materials, coal, sand, sandstone
    Add to Inquiry
First 123 Last 1/3

Working Principle

Material feeds continuously into the elevated end of the rotating horizontal drum. Internal spiral lifters and steel breaker bars tumble, shear, and cascade the material along the longitudinal axis. Gravity pulls particles smaller than the aperture openings down through the screen deck into the underflow discharge hopper. Oversized material travels the full length of the cylinder and exits through the oversize discharge chute. Separation efficiency relies directly on drum rotational speed (calculated as a percentage of critical speed), retention time, drum inclination angle, and total open area of the screening media.



Key Features



Key Features

Rolled from structural steel or abrasion-resistant plate (400 HBW hardness) with continuous welded longitudinal stiffener ribs to prevent shell flexing under heavy dynamic loads.

Four-Point Trunnion Support

External trunnion wheel configuration distributes axial and radial loads evenly across machined steel riding rings, eliminating the center-shaft fatigue failures inherent in shaft-driven designs.

Modular Bolt-In Screen Panels

Interchangeable perforated steel plates or polyurethane tensioned panels secured with heavy-duty countersunk bolts for rapid replacement during scheduled maintenance turnarounds.

Sealed Dust Containment Housing

Fully enclosed structural steel housing equipped with adjustable heavy-duty rubber skirting, bolted inspection access doors, and negative-pressure dust extraction ports.



Compost trommel screen machine screening compost into fine and coarse fractions



Applications

Solid Waste & Recycling: Trommel classification of municipal solid waste (MSW), refuse-derived fuel (RDF), glass recycling, and container glass fraction cleanup.


Compost & Organics: Sizing raw compost, wood chips, bark, and shredded green waste to extract contaminants and produce marketable soil amendments.


Aggregate & Mining: Scalping quarry overburden, alluvial gravel washing, gold-bearing placer mining, and run-of-mine (ROM) scalping ahead of primary crushing circuits.


Construction & Demolition (C&D): Separating inert aggregates, concrete rubble, brick fragments, and soil from mixed demolition debris streams.



Trommel Configuration

Standard Stationary Plant

Skid-mounted or concrete-pier installed units engineered for fixed-site recycling yards and permanent aggregate processing facilities.

Mobile & Portable Units

Chassis-mounted assemblies complete with feed hoppers, discharge conveyors, tandem axles, and onboard power packs.

Multi-Stage Trommels

Nested or sequential concentric drum designs performing dual-fraction separation (producing three distinct size outputs) within a single pass.



Screening & Drive Options


Drive Systems: Chain-and-sprocket, direct shaft-mounted planetary gearmotors, or friction tire (tire-driven) configurations utilizing heavy-duty industrial solid rubber tires.



Screen Media Types: High-manganese steel woven wire mesh, laser-cut abrasion-resistant perforated steel plates, and injection-molded polyurethane panels with slotted or square apertures ranging from 5 mm to 150 mm.



Cleaning Mechanisms: Continuous external rubber brush assemblies or chain-actuated knocker bars positioned above the drum to eliminate aperture blinding when processing wet, sticky topsoil or high-clay compost.



Manufacturing & Quality Control



1

Plate Cutting & Rolling

CNC plasma cutting and multi-roll plate bending machines ensure true cylindrical concentricity, holding radial runout tolerances within +/- 1.5 mm to prevent vibrational fatigue during rotation.

2

Welding Standards

Structural welds performed by certified welders adhering to established structural fabrication standards, followed by non-destructive testing (such as magnetic particle inspection) on critical trunnion and drive ring weldments.

3

Surface Preparation & Coating

Grit-blasted to industrial cleanliness standards, coated with a dual-component epoxy zinc-rich primer (80 um) and a polyurethane topcoat (120 um) for coastal and chemical plant corrosion resistance.

4

No-Load Factory Run-Test

Every assembled drum undergoes a mandatory mechanical run test measuring bearing temperature stabilization, drive amperage draw, and rotational true-run prior to dispatch.



Customization






Dimensioning

Custom drum diameters from 1,000 mm to 3,000 mm and lengths from 3,000 mm to 10,000 mm engineered for target throughput requirements.





Drive Integration

Dual-motor drives for redundancy, explosion-proof motors for hazardous waste sorting facilities, or variable frequency drives (VFD) for adjustable retention time.





Feed Hopper Integration

Custom-engineered vibrating grizzly feeders, belt feeders, or direct excavator-fed receiving hoppers matched to the trommel inlet capacity.







Frequently Asked Questions



Q: How is trommel throughput capacity calculated for moist or sticky materials?

A: Throughput is determined using bulk density, desired separation cut-point, moisture percentage, and open-area ratio of the screen plates. For high-moisture materials like compost (> 35 percent moisture), capacity ratings are adjusted downward by 20% to 30% compared to dry aggregates, and internal spiral lifters are re-pitched to accelerate axial movement and prevent material banking.

Q: What is the difference between trunnion-supported and shaft-driven trommels?

A: Shaft-driven trommels feature a central longitudinal pipe running through the drum, which obstructs material flow and is prone to wrapping with fibrous waste (plastics, textiles, vines). Trunnion-supported units utilize an open-core drum design driven by external friction tires or peripheral gear rings, providing an unobstructed interior volume and higher resistance to impact loads from large rocks or concrete slabs.

Q:How do you prevent screen blinding when processing damp topsoil or compost?

A: Blinding is mitigated through three engineering controls: selecting polyurethane panels with self-cleaning tapered slot apertures (wider on the underside), integrating a counter-balanced external mechanical knocker assembly that taps the mesh panels as they rotate past top-dead-center, and installing internal spiral steel bars to break up agglomerated soil clumps.

Q: What maintenance schedule is required for the main trunnion bearings and drive components?

A: Grease lubrication of the spherical roller trunnion bearings is recommended every 100 operating hours using high-temperature lithium complex grease. Alignment of trunnion support wheels, drive chain tension (if chain-driven), and gearbox oil levels must be inspected every 500 operating hours to prevent uneven wear tracks on the riding rings.

Q: Can the screen panel apertures be modified after installation if sizing requirements change?

A: Yes. Because the drum shell utilizes modular bolted-in panels rather than a welded-continuous mesh, operators unbolt existing worn or mis-sized panels and install new perforated plates or polyurethane modules with different cut-sizes within a standard 4-to-8-hour maintenance window.

Q: What electrical controls and safety integration are provided for industrial installations?

A: Standard control enclosures house industrial switchgear complete with programmable logic controller (PLC) integration, local emergency stop circuits, motor overload protection, and optional VFD speed control. Systems can be engineered to comply with regional electrical and safety directives required by international project specifications.

Zhengzhou Sinolion Machinery Co., Ltd. is well-known as one of the leading trommel screen manufacturers and suppliers in China, featured by quality products and competitive price. If you're going to buy trommel screen for sale, welcome to get more information from our factory.
