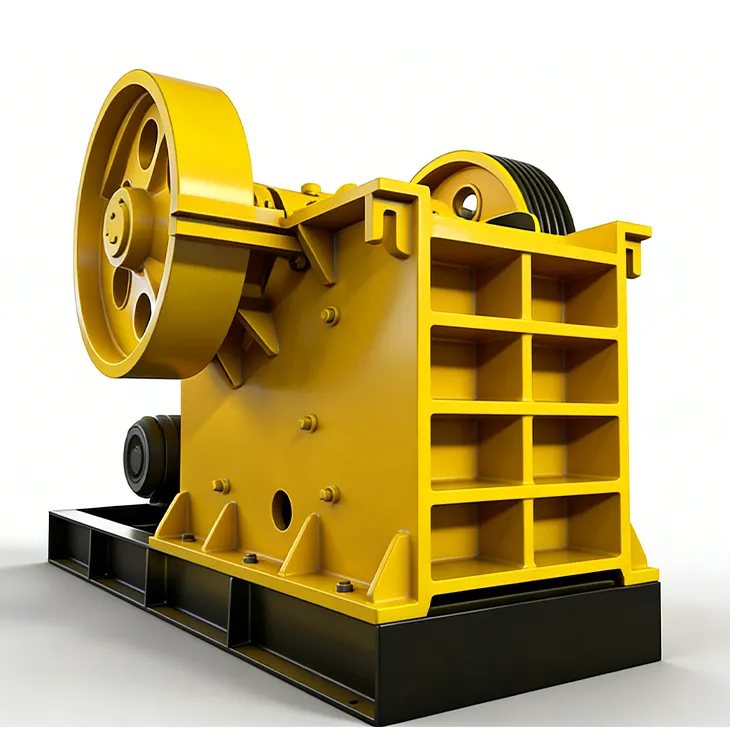

Jaw Crusher
Discover the working principle, core advantages, and applications of the Jaw Crusher. As the premier choice for primary crushing in mining and construction, the Jaw Crusher is renowned for its efficiency, durability, and low maintenance costs.
The "First Line of Defense" in Mining
If you are running a quarry or a mining site, you know the drill: big rocks need to become little rocks. Enter the Jaw Crusher.
Often nicknamed the "tiger's mouth," this machine isn't flashy, but it is essential. It serves as the primary stage in crushing circuits, taking in massive, blasted boulders and breaking them down for the finer equipment down the line. Whether you are dealing with abrasive granite or hard basalt, the Jaw Crusher is built to take the initial beating so your secondary crushers don't have to.
How It Actually Works
Think of a giant nutcracker. That is essentially the mechanics of a jaw crusher, but on an industrial scale.
Instead of complex rotary systems, it relies on a simple, powerful compressive force:
1. The Chamber:
You have two vertical jaws. One is fixed (stationary), and the other moves (swing jaw).
2. The Motion:
Powered by a motor and a heavy flywheel, an eccentric shaft moves the swing jaw back and forth.
3. The Crush:
Material drops into the V-shaped cavity. As the jaws converge, the rock has nowhere to go but to break.
4. Gravity Does the Rest:
Once the rock is small enough, it falls through the bottom gap (the discharge setting) onto your conveyor belt.
Why Choose a Jaw Crusher? Key Advantages
Among various crushing machines, the Jaw Crusher stands out as the preferred choice for coarse crushing due to these benefits:
● Simple Structure & Easy Maintenance:
Its streamlined design means fewer points of failure. Whether replacing jaw plates or performing routine checks, maintenance is quick, significantly reducing downtime.
● High Crushing Ratio:
It can accept large feed sizes and reduce them significantly in a single pass, offering high efficiency.
● Durability:
Jaw plates are typically made from high-manganese steel or other wear-resistant alloys, allowing them to withstand the long-term abrasion of hard rocks like granite and basalt.
● Low Operating Costs:
As a classic piece of equipment, it offers relatively low energy consumption, and spare parts are widely available and affordable.
Key Applications
Thanks to its versatility, the Jaw Crusher plays a critical role in multiple sectors:
● Mining: Primary crushing of metal ores such as iron, copper, and gold.
● Aggregate Production: Producing sand and gravel for highways, railways, and construction projects.
● Construction Recycling: Crushing concrete and demolition waste for resource recycling.
● Cement Industry: Processing raw materials like limestone.
Quick Tips for Buyers
Not all Jaw Crushers are created equal. If you are in the market for one, don't just look at the price tag. Keep an eye on:
● Feed Size:
Ensure the opening (gape) is larger than the biggest rock you plan to dump in. Bridging (rocks getting stuck) is a productivity killer.
● CSS (Closed Side Setting):
Can you adjust the discharge opening easily? Modern hydraulic adjustment systems save hours of manual labor compared to old shim systems.
● Throughput:
Match the machine's capacity to your screens and secondary crushers. A bottleneck at the start slows down the whole operation.
| Model | Max Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
|---|---|---|---|---|---|
| PE-150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 |
| PE-200×300 | 180 | 20-70 | 2-8 | 11 | 1.4 |
| PE-250×400 | 210 | 20-80 | 5-20 | 15 | 3 |
| PE-400×600 | 350 | 40-100 | 15-60 | 30 | 6.5 |
| PE-500×750 | 425 | 50-100 | 40-110 | 55 | 11.3 |
| PE-600×900 | 480 | 65-160 | 90-150 | 75 | 17.625 |
| PE-750×1060 | 630 | 80-160 | 100-250 | 90-110 | 27.5 |
| PE-900×1200 | 750 | 95-165 | 120-300 | 110-160 | 52 |
| PE-1000×1200 | 850 | 110-260 | 180-350 | 110-160 | 57 |
| PE-1200×1500 | 1020 | 150-300 | 300-500 | 180-220 | 100 |
Final Thoughts
The Jaw Crusher remains the backbone of the crushing industry for a reason. It balances brute force with mechanical simplicity. For operators looking to maximize uptime and minimize headaches, starting your circuit with a quality jaw crusher is the smartest move you can make.
In addition, we also provide complete production lines thhat are matched with this machine.
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of jaw crusher in China. Please feel free to buy high quality jaw crusher for sale here from our factory. Good service and reasonable price are available.
