Portable Compost Trommel Screen Plant

Precision-Composting Demands Precision Equipment Mature compost requires months of controlled biodegradation. The critical final step? Grade-specific separation where our portable trommel excels.

Send Inquiry

trommel screen

product-800-1063

Why Specialized Compost Screening Matters:
→ Maximize Product Value: Isolate premium particles for premium pricing
→ Eliminate Contaminants: Remove oversize/unfinished material
→ Optimize Consistency: Deliver uniform texture customers demand

Engineered for Compost Refinement:
✔️ Gentle Tumbling Action – Preserves soil microbe integrity
✔️ Humidity-Tolerant Design – Processes damp material without clogging
✔️ Variable-Speed Control – Dial in perfect retention time

"Transform matured compost into certified premium product in one pass."

Product Name	Compost Trommel Screen Machine
Product Type	WTS0820	WTS1022	WTS1230	WTS1550
Trommel Diameter	800 mm	1000 mm	1200 mm	1500 mm
Trommel Length	2000 mm	2200 mm	3000 mm	5000 mm
Total Power	2.2 kw	8.2 kw	10.6 kw	20 kw

Advanced Compost Classification Technology

Modern organics facilities increasingly adopt trommel-based separation systems for their superior material handling efficiency and minimal operational complexity. Unlike mechanically intensive alternatives, these solutions leverage gravitational kinetics-reducing moving parts by 60% while delivering continuous processing capacities exceeding 80 tons/hour.

Precision Separation Mechanics

Our portable units feature tension-optimized screening drums engineered with radial flight patterns. This configuration generates controlled lift-and-drop cycles that:

Enable size stratification: Sub-screen particles fall through calibrated apertures

Ensure progressive refinement: Oversize materials traverse drum length for discharge

Prevent material degradation: Gentle tumbling preserves compost structure

Engineered Flow Dynamics

Adjustable Drum Slope (4°-8°): Regulates material retention from 45-120 seconds

High-Open-Area Tension Screens: 38-42% effective screening surface (vs. 28% rigid panels)

Micro-Gauge Wires: Enables <3mm precision without structural compromise

product-800-600

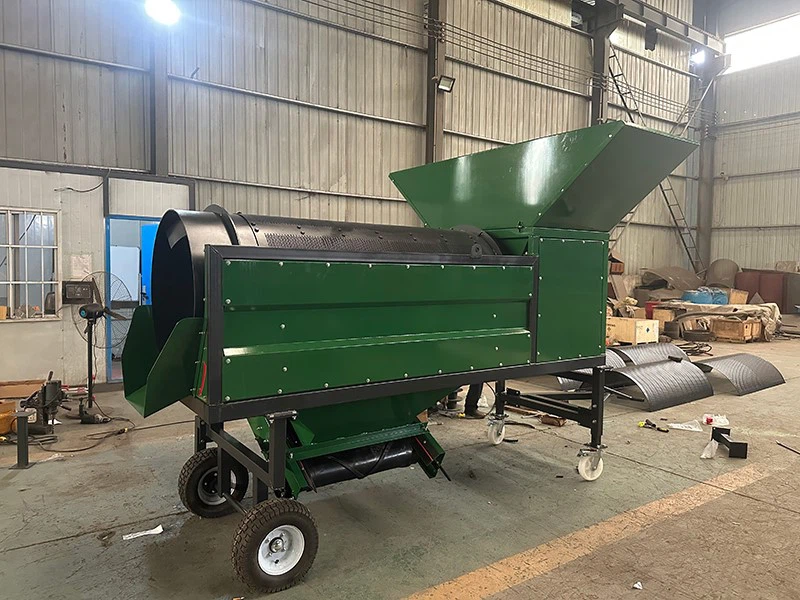

This portable compost trommel screen plant is our small model MTS0818 mobile trommel screen, the diameter of the drum is 800 mm, the length of the drum is 1800 mm, the processing capacity is 15 cubic meters per hour, and the weight is 520 kg. The screen mesh of the drum can be customized according to the needs, and the side conveyor can be selected.

The inside of the screen is designed with spiral, which can make the material move forward during the screening process, so that the material can be screened more evenly.

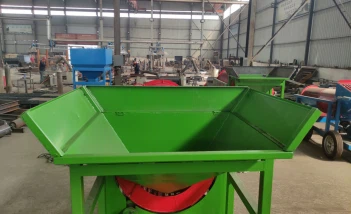

The hopper is designed with hinges, which can be folded, which increases the feeding area.

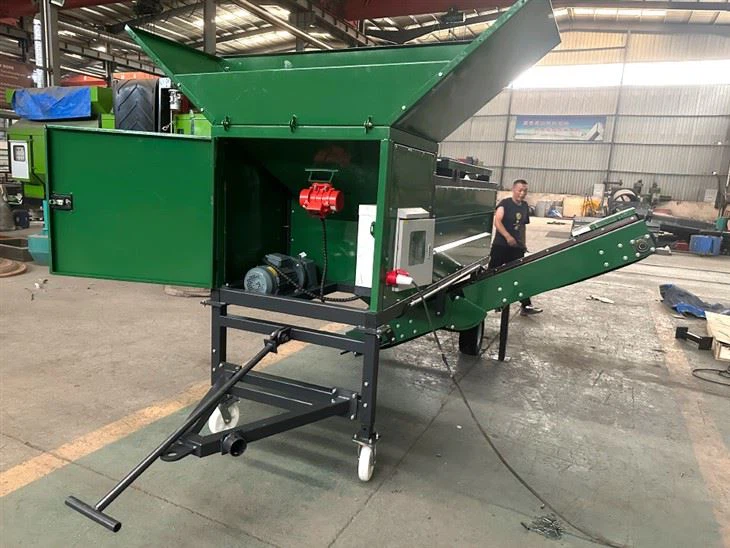

Equipped with a motor and a reducer, the motor drives the reducer to work, thereby driving the carrier roller at the bottom of the drum to rotate, make the drum turn.

The front of the machine is equipped with traction and universal wheel, which is very convenient to move.

We did a lot of research as to what type of screen would deliver the best end product for our customers, while still being productive. Committed to providing customers with the highest quality and most suitable products.
