Gold Wash Machine
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of gold wash machine in China. Please feel free to buy high quality gold wash machine for sale here from our factory. Good service and reasonable price are available.

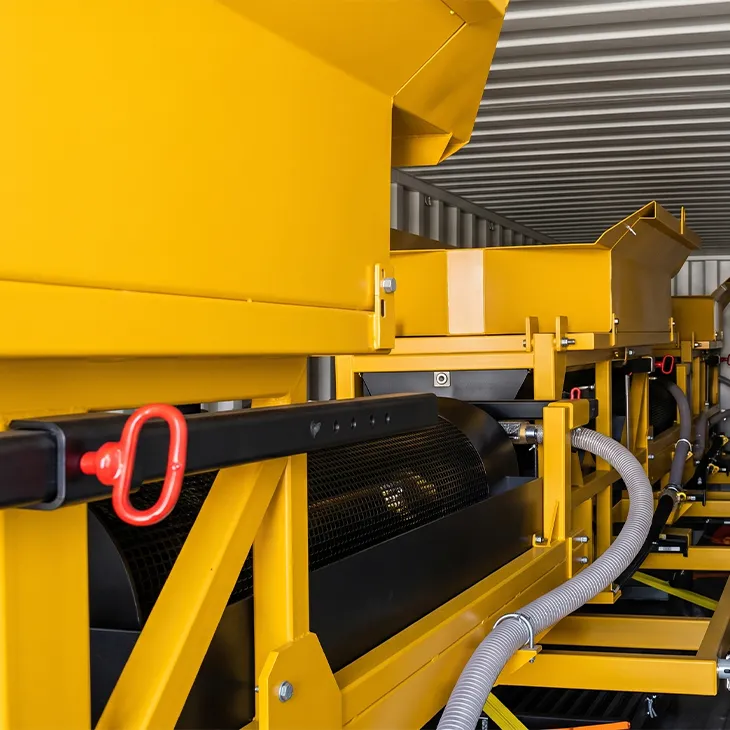

Gold Wash Machine is a complete all-in-one plant for alluvial and placer gold mining. It washes clay and mud off the ore, screens out oversized rocks, and concentrates the free gold in one continuous flow - with capacities from 5 to 300 TPH and gold recovery rates of 90–97%. Available in mobile, portable and fixed configurations to match any mine site.
Key Selling Points
✅ One-stop solution - feeding, washing, screening and gold recovery in a single plant; plug-and-play operation
✅ Up to 97% gold recovery - sluice box + centrifugal concentrator + shaking table matched to your ore
✅ Handles sticky clay - rotary scrubber option breaks down clay, laterite and kaolin (washed ore < 0.5% mud)
✅ 5–300 TPH capacities - customizable to your production target (10 / 50 / 100 / 200 TPH)

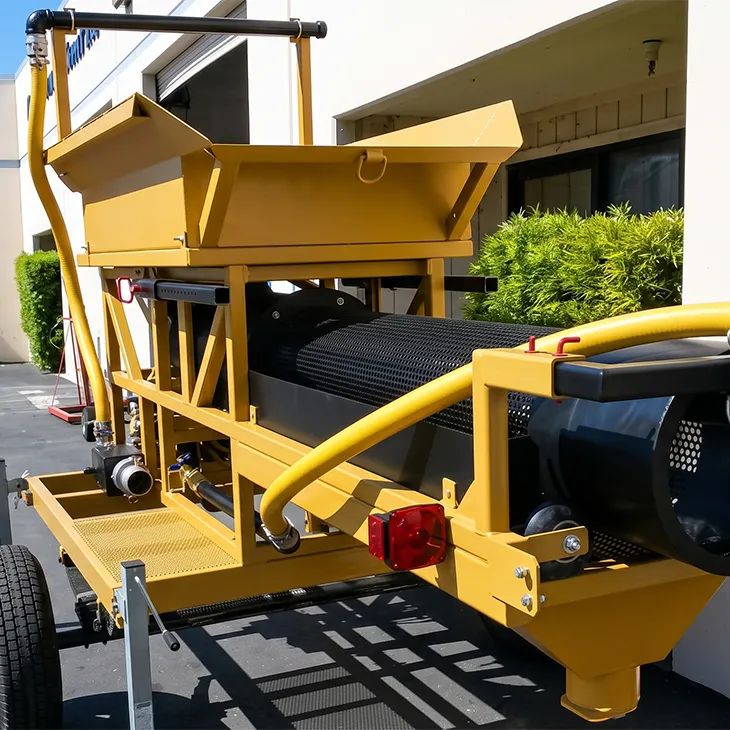

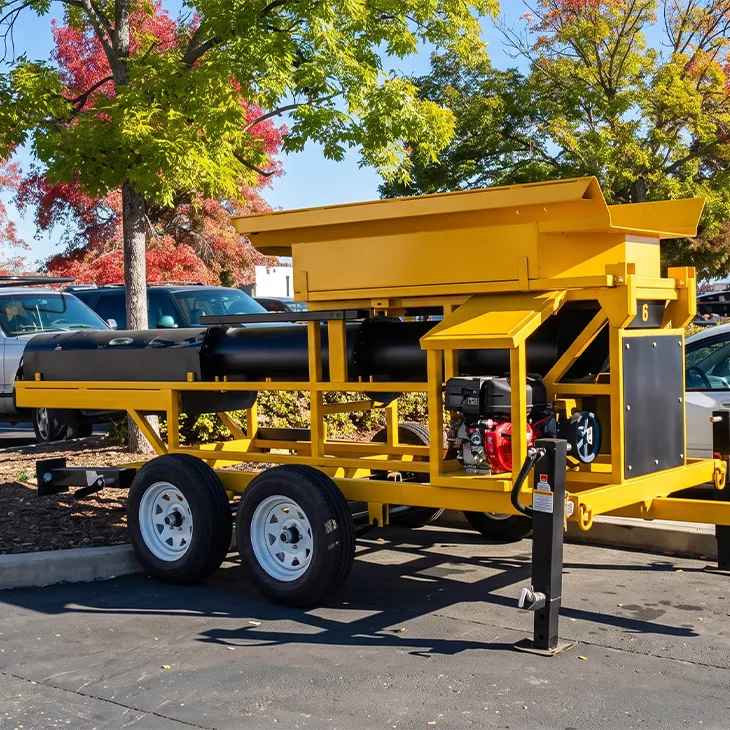

✅ Mobile & quick setup - trailer-mounted plants move with your mine site; install in days, not months
✅ Water recycling system - cuts operating cost and meets environmental requirements
✅ Heavy-duty build - durable steel drum, replaceable screens, low-maintenance design for 24/7 operation
✅ Free ore testing & flowsheet design - we test your sample and guarantee the recovery rate before you buy
Technical Specifications
| Parameter | Trommel Screen Type | Rotary Scrubber Type |
|---|---|---|
| Working capacity | 1–300 TPH | 5–250 TPH |
| Max feeding size | 150–200 mm | up to 230 mm |

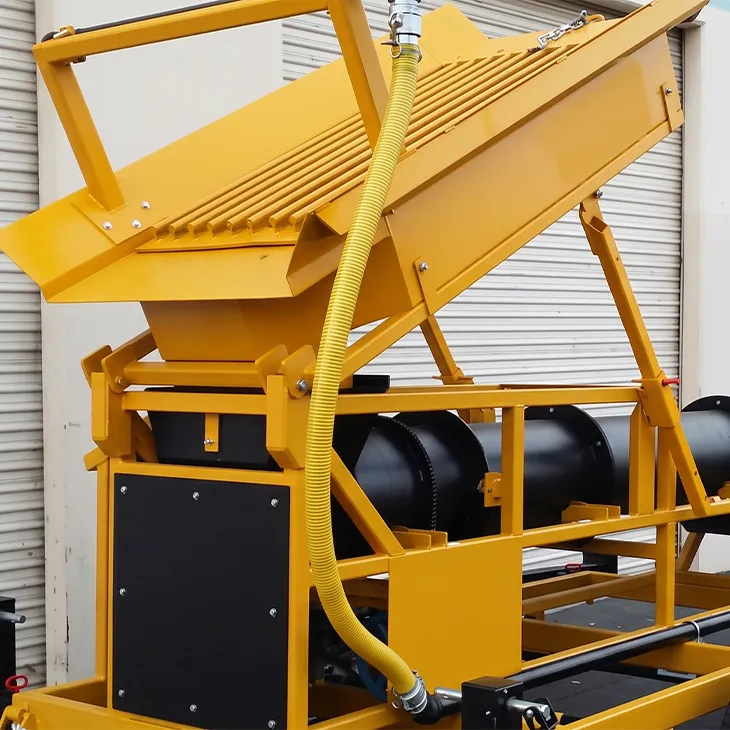

| Main equipment | Trommel screen + sluice box | Rotary scrubber + sluice box / concentrator |
| Optional recovery | Centrifugal concentrator, shaking table, jig | Centrifugal concentrator, shaking table |
| Washing efficiency | - | up to 98% |

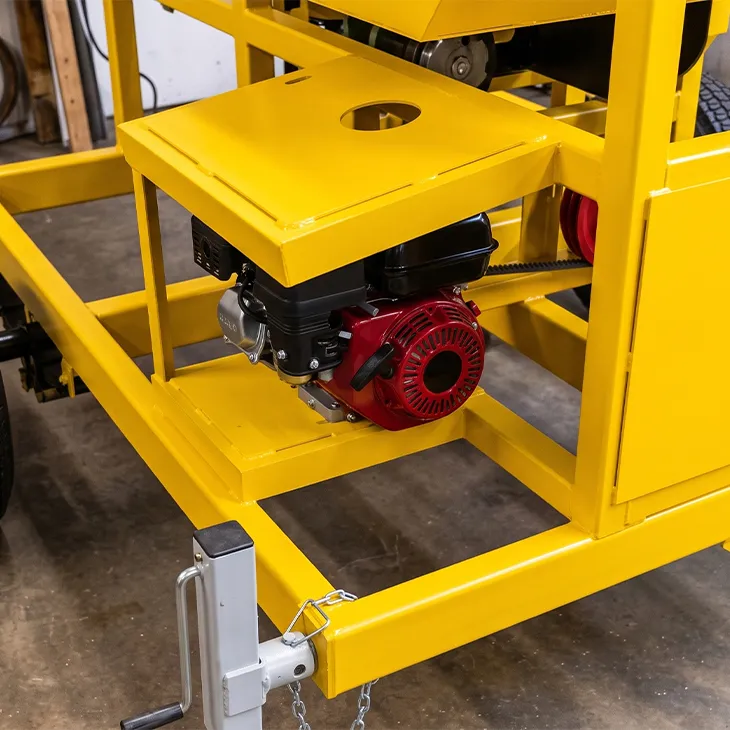

| Power source | Electric grid or diesel generator | Electric grid or diesel generator |
| Configuration | Mobile / portable / fixed | Mobile / portable / fixed |
Reference models (for quotation):
| Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Power (kw) | Overall Dimension L*W*H (mm) | Weight (kg) |
| GMTS0519 | 500 | 1910 | 5-10 | 1.5 | 3000x1000x1800 | 550 |
| GMTS1020 | 1000 | 2000 | 10-30 | 4 | 3390x1400x2140 | 1500 |
| GMTS1225 | 1200 | 2500 | 30-50 | 5.5 | 4146x1600x2680 | 2200 |
| GMTS1548 | 2000 | 4800 | 80-150 | 11 | 8460x2300x2500 | 6800 |
| GMTS1848 | 2000 | 4800 | 150-200 | 15 | 9860x2300x3420 | 7200 |
Applications
- Placer / alluvial gold mining
- Ancient riverbed and river gold
- Sticky clay and laterite gold deposits
- Tailings re-processing (ball mill tailings, old dumps)
- Gemstones, zircon and other heavy mineral sands
Standard Configuration & Optional Equipment
Standard: feeder hopper with grizzly → trommel screen / rotary scrubber → sluice box → water pump & pipes → control system
Optional: centrifugal concentrator · shaking table · mineral jig · magnetic separator (for high-iron ore) · diesel generator (Cummins / Mitsubishi / Weichai) · remote monitoring system
Get a Free Flowsheet & Quote for Your Mine
Quality & Service
- Ore sample testing and guaranteed recovery rate before order
- Flowsheet design by experienced mineral processing engineers
- 12-month warranty on main machines; spare parts available worldwide
- On-site installation guidance and operator training (video or engineer dispatch)
- Project references: alluvial gold wash plants delivered to Ghana, Nigeria, Sudan, Indonesia, Russia
Packaging & Shipping
- Standard export packing: steel frame + waterproof canvas for sea freight
- Shipping: FOB / CIF / DDP available; 20ft / 40ft container loading plan provided
- Lead time: 15–30 days after deposit (customized plants up to 45 days)
FAQ
Q1. What is your MOQ?
One complete plant (customized to your capacity). We also supply single machines such as trommel screens and sluice boxes.
Q2. Can it handle sticky clay?
Yes - choose the rotary scrubber configuration. It dissociates clay before screening, leaving less than 0.5% mud in washed ore.
Q3. What recovery rate can you guarantee?
90–97%, depending on your ore. We test your sample first and confirm the recovery rate in the flowsheet before production.
Q4. Do you support OEM / custom capacity?
Yes. Capacities from 5 to 300 TPH, mobile or fixed, custom colors and logos available.
Q5. How fast can you deliver?
15–30 days for standard models after deposit; 30–45 days for fully customized plants.
