Mobile Soil Drum Screen

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of mobile soil drum screen in China. Please feel free to buy high quality mobile soil drum screen for sale here from our factory. Good service and reasonable price are available.

Our mobile soil drum screen is a great option for producing soil. Our soil trommel screen is an electric powered/generator powered portable topsoil screening machine. It can be used for separating materials from medium. This machine will quickly and easily separate rocks and debris from soil , sand, and other free-flowing materials.

Whether it is large oversize boulders or wet sticky soil with large volumes of clay present, Sinolion have a screening solution to meet your application. Our company offer a wide range of trommel types and flip flow screens to be utilised in the recovery and removal of unwanted materials such as aggregate, clay, leaves and plants to provide clean, high quality soil. Our mobile soil drum screen ranges boast robust, durable designs coupled with a smart control systems to ensure for an efficient trouble free screening solution.

We stock a full range of screening equipment to help you turn your raw dirt into soil that you can sell. We provide small and large trommel screens, and more to suit every budget and use case.

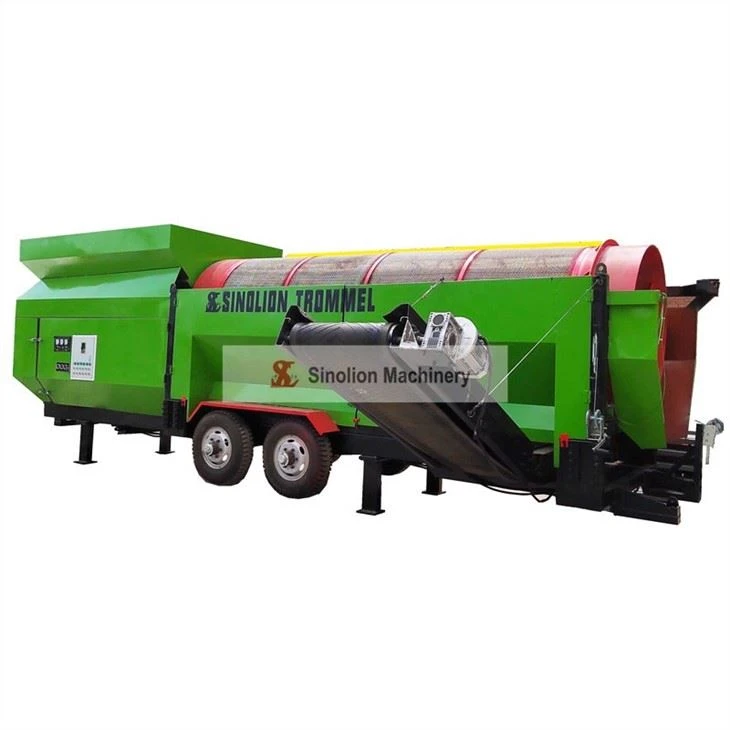

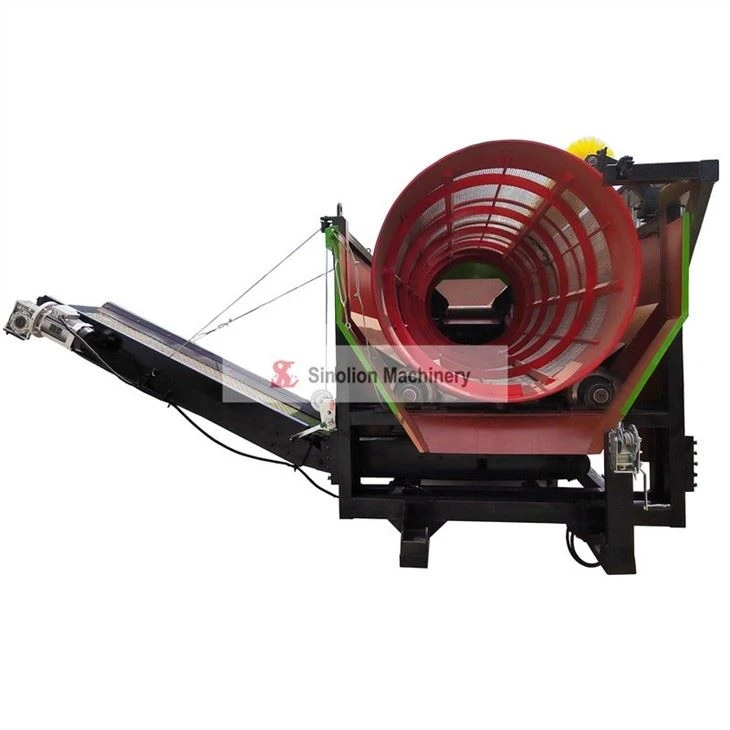

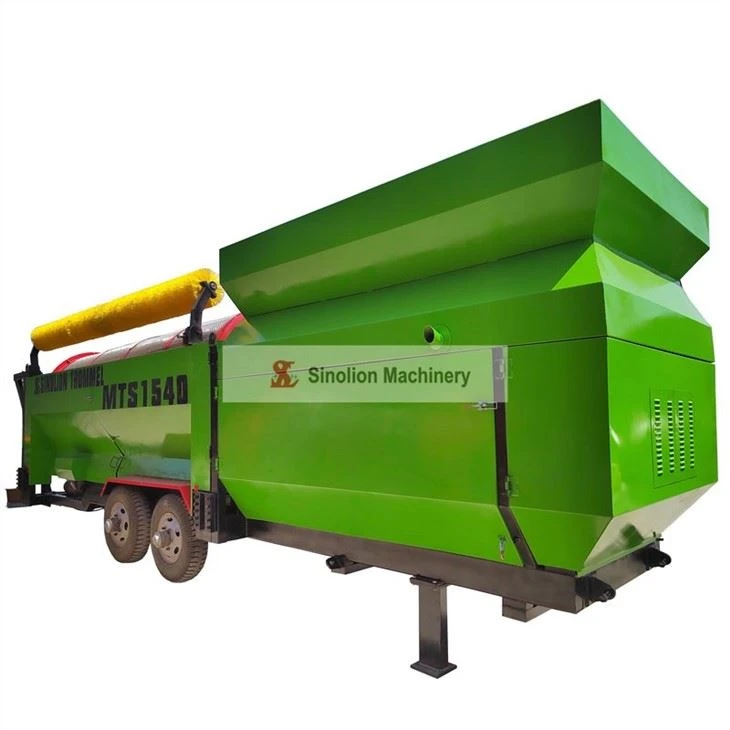

This is our Model MTS1550 mobile soil drum screen with a drum diameter of 1500mm, a drum length of 5000mm and a capacity of 90m3 per hour, suitable for medium and large composting operations. The mobile soil drum screen is mainly composed of hopper, trommel, conveyor, brush, base, traction and transmission parts. Equipped with feeding conveyor, discharge conveyor and cleaning brush. Compact structure, excellent design, high screening efficiency.

The soil to be screened is transported to the hopper by forklift, excavator or conveyor, and the hopper is equipped with a feed conveyor, which transports the material to the drum screen for screening. The material will roll as the drum rotates in the drum. Under the action of gravity, some fine-grained materials will be discharged through the screen to the discharge port at the bottom. Large pieces of material cannot pass through the screen, and will be pushed forward with the operation of the drum screen, and then discharged from the tail of the drum. The inside of the sieve is designed with a spiral shape, which can push the material forward during the material running process and increase the screening efficiency.

The configuration of the conveyor can be designed according to specific needs. It can be designed as 2 side conveyors, which can transport materials to different directions. And if you want to screen 3 different sizes of materials at the same time, you need to design the screening part into two different apertures, the small aperture is in front, and the large aperture is in the back, so that the materials can be screened into 2 different sizes. discharge from both sides. The large material is discharged from the tail. If the sieve hole is designed in one size, it can be designed as a bottom conveyor and a side conveyor to facilitate the collection of materials. The tail conveyor can also be used to transport the garbage to a farther place for accumulation.

Advantages:

1. Economical and efficient solution for screening;

2. Screen replaceable for different mesh sizes; Easily change screen plates;

3. High efficiency and big capacity;

4. Unique screen design, result in higher capacities, longer screen life and no material clogging;

5. Heavy duty feed hopper;

6. Discharge chute;

7. Generator drive optional
