Mobile Rotary Screen

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of mobile rotary screen in China. Please feel free to buy high quality mobile rotary screen for sale here from our factory. Good service and reasonable price are available.

Introduction of mobile rotary screen:

Mobile rotary screen is installed on the basis of the rotary screen movable device, to solve the problem of moving the rotary screen position. It is a new type of movable screening platform, which is suitable for power plant, coking plant, building materials, metallurgy, chemical industry, mining and other industries requiring mobile operation. It has the characteristics of less investment, less labor, quick return on investment, simple operation, flexible and so on.

Structure characteristics of mobile rotary screen:

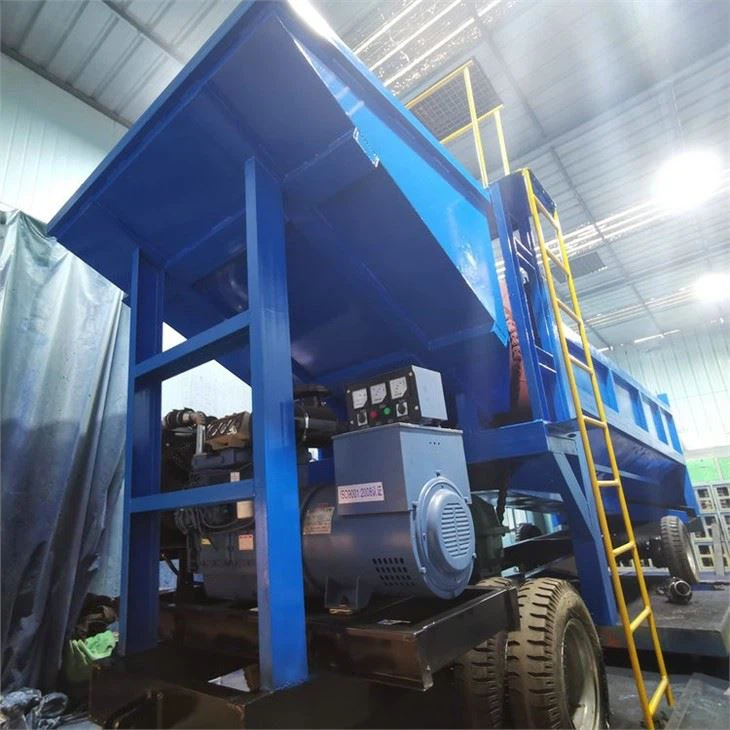

Mobile rotary screen by the bin, cylinder, chassis, tires, turntable, generator, water pump, transmission device, control cabinet composition, cylinder using a strong reinforced supporting wheel support and gear side drive structure, or sprocket drive structure. Screen mesh adopts high manganese steel woven screen mesh, large processing capacity, high efficiency, long service life, simple replacement of screen mesh, no blockage. The bottom frame adopts heavy beam and is equipped with mobile tires. The structure is strong and the bearing capacity is strong. The front wheels can achieve 180° turn and move flexibly, so that the mobi lurgy, chemical industry, mining and other industries requiring mobile operation. It has the characteristics of less investment, less labor, quick return on investment, simple operation, flexible and so on.

Working principle of mobile rotary screen:

The working principle of mobile rotary screen is the same as that of traditional rotary screen. The rotary device is mounted on the rack, and the whole through shaft structure is designed. The reducer and the central shaft of the rotary are connected together through a coupling, and the motor drives the driving rotary device to rotate around its axis. When the material enters the rotary device, the rotary tilts, the centrifugal force makes the material on the screen surface turn over and roll, and the ideal material is screened out. The qualified materials (products under the screen) are discharged from the discharge port at the bottom of the rear end of the rotary, and the unqualified materials (products on the screen) are discharged from the discharge port at the tail of the rotary. Due to the material in the rotary turnover, rolling, so that the stuck in the mesh of the material can be ejected, to prevent the mesh plugging.

So why is it that mobile rotarys can be incorporated into production so quickly?

The reason is that the mobile rotary screen on the basis of the rotary screen using a tyred mobile mode, a wider range of movement, more convenient to move

Working principle: by along the axis of rotation, the use of perspective within the cylindrical screen 亠 of material and move forward, and the material inside the rotary was taken to a certain height after fall, will help improve screening efficiency, sits sieve stranded on the surface of particles, which can effectively prevent clogging. Very suitable for gold panning use, after many gold selection plant using mobile rotary screen experience, mobile rotary screen can effectively replace the original screening equipment can also be more convenient and efficient.

No matter what the device is, we recommend checking it before using it. Before using the mobile rotary screen, we need to check the electrical lines, switches are intact and sensitive; Whether the fasteners and bearing seats are loose; Whether the rotary transfer is flexible, whether the screen is blocked or perforated, whether the safety cover and the retaining plate are complete and firm; Add lubricating oil to each lubricating point. This can avoid problems in the use of the process, the use of more safe.

Mobile crushing station manufacturers introduce the rotary screen daily inspection and maintenance matters

Daily inspection

1. Electrical circuits and switches are intact and sensitive; Whether the fasteners and bearing seats are loose.

2. Whether the rotary transfer is flexible, whether the screen is blocked or perforated, whether the full shield and the retaining plate are complete and firm.

3. Add lubricating oil to each lubrication point regularly.

Please confirm in the safe situation to start the screen machine, screen machine start and stop must be no load state; The feeding material is uniform, the material shall not be mixed with hard sundries, there is no noise in the operation, otherwise it should be stopped immediately for processing.

4. Regularly remove the sticky materials and sundries in the screen; Power supply should be cut off after shutdown.

5. In the use of the rotary screen to do regular inspection, as early as possible to find problems, timely maintenance, to ensure that the equipment long life, rate, high quality work, to ensure that your production work smoothly! le platform can easily cope with a variety of complex road surfaces. Separate drive design of generator drive motor, also can choose to drive directly by diesel engine, lower failure rate, easy maintenance.

Equipment cylinder can be divided into heavy, light.

Heavy: the cylinder is doublelayer structure, the inner layer adopts the sieve structure, which is beneficial to prevent the large material from directly impacting the screen, greatly improving the service life of the outer screen and improving the screening efficiency of the outer screen.

Light: the cylinder is a single layer screen, which is used when the material does not contain large materials. The advantage of the singlelayer screen is that the weight of the whole cylinder is light, which can reduce the weight and energy consumption of the whole equipment.

Mobile Gold Rotary Screen Technical Parameters:
