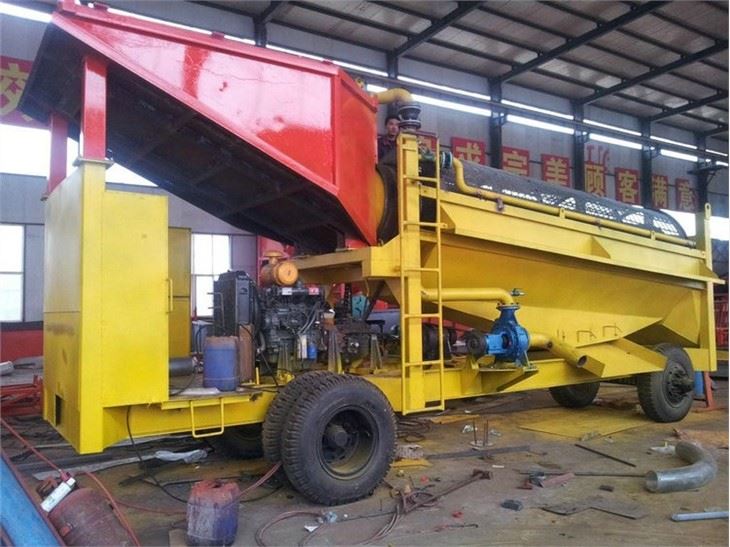

Diamond Trommel Screen
Diamond trommel screen
Diamond trommel screen is usually used for separating the diamond that is wrapped in clay.The pretreatment in the alluvial diamond recovery can make sure to supply cleaned diamond.
Diamond trommel screen connects washing and screening in one machine. As for the simplicity of operation, it not only be used for diamond, but also widely used for placer gold , tin, tantalite, zircon sand, etc.
Big size diamond trommel screen
In general, diamonds are distributed between 2mm and 30mm. In order to achieve output sizes of 2mm-30mm, the machine is equipped with two layers of screen mesh. The inner mesh is made of steel rods with an opening size of 30mm. It is sturdy and can withstand the impact of large rocks and gravel. On the inner screen, there are scrubbing blades welded to cut the clay with strong scrubbing action, which AIDS in cleaning.
The diamond trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Gold Trommel Screen are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance This material out from the Gold Trommel Screen is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
The above 30mm waste rock will be discharged at the tail of drum.
2-30mm flow with water, feed to jig concentrator by discharge chute.
The sieve is shown as followings.
Buy diamond washing machine from Zhengzhou Sinolion Machinery Factory, you can contain guaranties of high quality, reliability, simplicity of operation, maintainability, competitive price, uninterrupted supply with spare part and service. Welcome to contact us.
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of diamond trommel screen in China. Please feel free to buy high quality diamond trommel screen for sale here from our factory. Good service and reasonable price are available.
