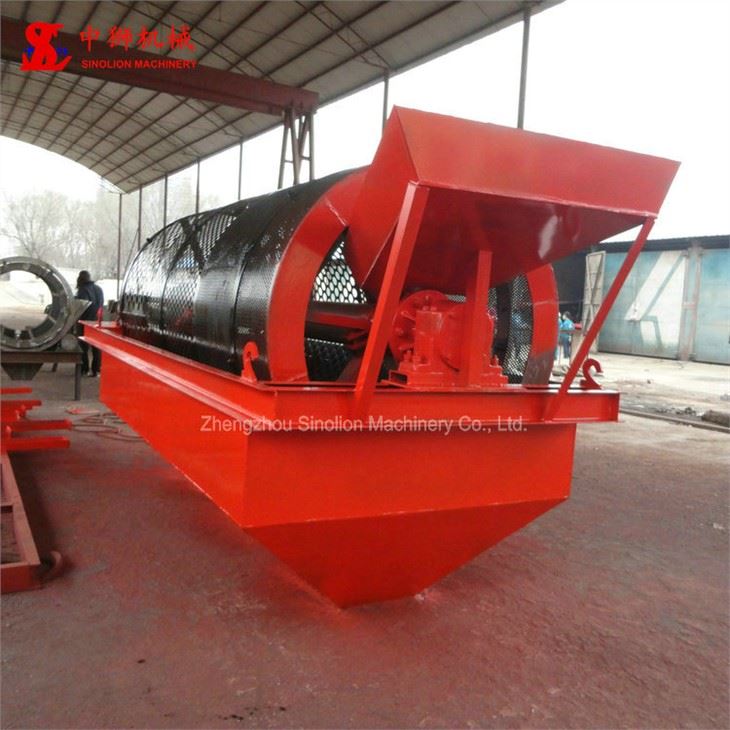

Bark Trommel Screen
The bark trommel screen adopts the classification design principle of sieving coarse material (large material) first and then fine material (small material), which greatly extends the mandate of the screen. Due to the basic principle of using sawdust drum to screen materials, not only the time of materials on the screen is greatly shortened, but also the materials under the screen can flow to the lower layer.
The materials that cannot be screened move forward with the tilt of the screen, thereby avoiding This solves the problem that the wood chip screen is easy to accumulate, and the material is easy to stay in the feeding area for too long. The screens used for screening of wood chip drums are 1cm, 2cm, 3cm, 4cm, 5cm, 6cm, 8cm, 10cm and other specifications. The screen is more than 10cm, and a total of five grades of materials are screened. Users can choose the specifications of the replacement screen according to their own material conditions. The replacement of the screen is relatively easy. Just remove the screen layer and install the new screen tightening screws.
The design specification of the feed inlet of the wood chip trommel is φ400mm-2500mm with a certain inclination. The user can use manual feeding or automatic feeding system. The height of the inlet from the ground is 1650mm (the centerline of the inlet), and the outlet is below. The general wood chip specification is between 1-5cm.
When the wood chip drum screen is manually loaded, the discharge port can fix the packaging bag without falling off, and the discharge port can be closed when the bag is replaced, so that there is a small amount of time for manual replacement and movement of the bag. The height of the discharge port from the ground is 500-600mm. When the user adopts an automatic discharge system, the distance between the discharge ports of this machine is 400mm, which can meet the installation position of the automatic discharge system for general users.
Model | Capacity | Power | Screen | Discharge Size | Input Size | |
(t/h) | (kw) | Diameter(mm) | Length(mm) | (mm) | (mm) | |
GTS1020 | 1-2 | 3.0 | 1000 | 2000 | 0~100 | ≤300 |
GTS1030 | 2-3 | 4.0 | 1000 | 3000 | 0~100 | ≤300 |
GTS1240 | 3-5 | 5.5 | 1200 | 4000 | 0~100 | ≤300 |
GTS1540 | 5-8 | 7.5 | 1500 | 4000 | 0~100 | ≤300 |
GTS1560 | 6-10 | 11 | 1500 | 6000 | 0~100 | ≤400 |
GTS2080 | 10-20 | 15 | 2000 | 8000 | 0~100 | ≤400 |
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of bark trommel screen in China. Please feel free to buy high quality bark trommel screen for sale here from our factory. Good service and reasonable price are available.
