Small Gold Washing Machine
video
Small Gold Washing Machine

Small Gold Washing Machine

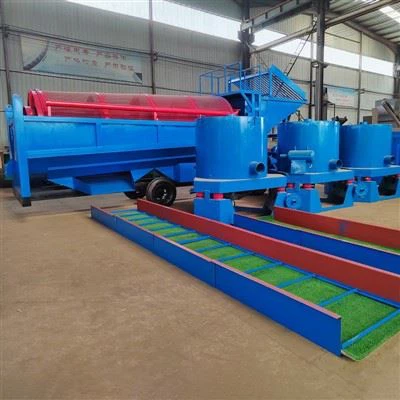

The Small Gold Washing Machine is a mobile gold separator, which is suitable for heavy metal particle recovery.
Send Inquiry



Product Introduction

The Small Gold Washing Machine is a mobile gold separator, which is suitable for heavy metal particle recovery. It is a solution for alluvial gold mining operations. The machine adopts technology for extracting heavy metal particles, which can separate raw materials with different densities to meet different interests. We offer optional feeding hopper or conveyor to adapt to working conditions and operating conditions. Our Small Gold Washing Machine has a wide application. It is suitable for granular gold, capillary gold, flake gold, and fine gold particles. Please let us know if you are interested!



Features

This Small Gold Washing Machine is used to wash the gold from the sand. It can adapt to the sand recovery rate in different terrain environments. The equipment is compact in size and light weight, easy to move. It has advantages of high efficiency, low noise, long service life and low maintenance cost.



gold-trommel-screen4(1)

Small Gold Washing Machine

Small Gold Washing Machine





Hot Tags: small gold washing machine, China, manufacturers, suppliers, factory, price, for sale, Ballistic Separator, Iron Remover, Permanent Iron Separator

Model Trommel
diameter
(mm)
Trommel
length
Capacity
(t/h)
Power
(kw)
Discharge
(mm)
input
(mm)
Dimension
(L*W*H)(mm)
weight
(kg)
GMTS0519 500 1910 5-10 1.5 0-100 ≤300 3000x1000x1800 550
GMTS1020 1000 2000 10-30 4 0-100 ≤300 3390x1400x2140 1500
GMTS1225 1200 2500 30-50 5.5 0-100 ≤300 4146x1600x2680 2200
GMTS1548 2000 4800 80-150 11 0-100 ≤400 8460x2300x2500 6800
GMTS1848 2000 4800 150-200 15 0-100 ≤400 9680x2300x3420 7200
