Large Roller Screen For Construction Waste
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of large roller screen for construction waste in China. Please feel free to buy high quality large roller screen for construction waste for sale here from our factory. Good service and reasonable price are available.
Production description
The construction waste sorter can separate waste fabrics, plastic bags and other debris from construction waste aggregates, as well as large and medium-sized wooden blocks and plastic stool waste. After two screenings, the impurity separation rate increased. With the rapid development of the domestic construction industry, a large amount of construction waste is generated during the construction process, and the effective utilization of urban construction waste as a resource, construction waste crushing station is a solution to the disposal of construction waste. The mobile construction waste crushing station is flexible, convenient and highly maneuverable, which can save a lot of infrastructure and relocation costs; it can crush materials on site and move with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of materials.
Pictures

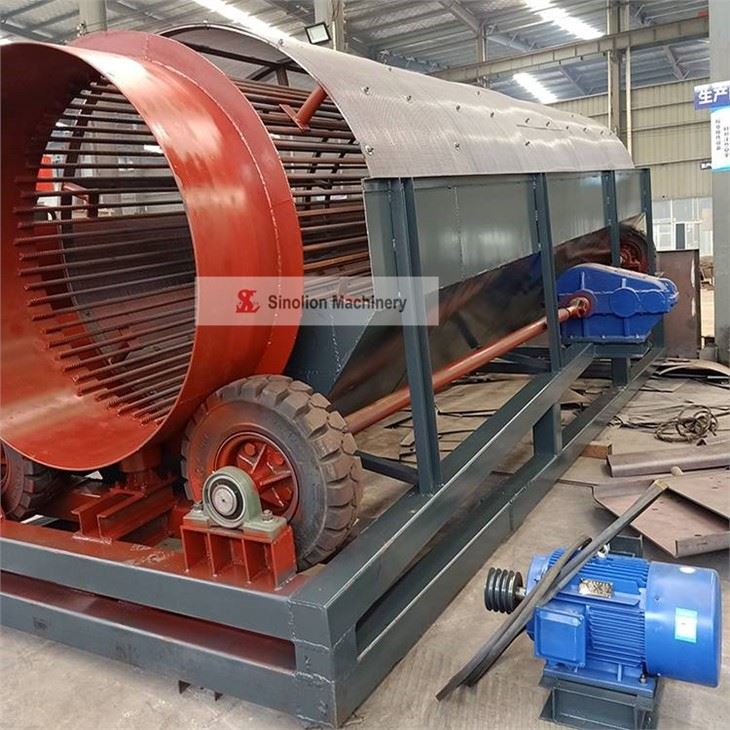

Using the rolling conveying principle, the friction coefficient is small, the friction is light, and the screen holes are not easy to be blocked. The roller support adopts an integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise. The internal drum screen fittings adopt split design, simple structure, quick and convenient replacement and maintenance. The drum body adopts an effective fully enclosed structure, and the dust does not leak and fly, so that the civilized production can be reliably guaranteed. The separator is a new generation of screening equipment. Shaftless drum screening machine is mainly composed of motor, reducer, drum device, frame, sealing cover, and inlet and outlet. The whole is inclined to the ground plane, and the outside is sealed by a sealed isolation cover to prevent environmental pollution. Through the variable speed deceleration system, the screening drum is rotated at a certain speed, and the materials are separated from the top down through the screening drum. The fine material is discharged from the lower part of the front end of the screening drum, and the coarse material is discharged from the lower end of the screening drum. Separator Zhengyun Machinery's new trommel sieve machine shaftless trommel sieve for quarries, multi-function sand and soil gravel sieve machine Size model
Hot Tags: large roller screen for construction waste, China, manufacturers, suppliers, factory, price, for sale, gold ore separator trommel screen, gold trommel screen price, gold wash plant trommel 2 different sizes, small portabl gold trommel screen, gold drum trommel, mobile diesel gold trommel gts10
|
Model |
Drum size(m) |
Drum inclination (°) |
Drum speed (r/min) |
Mesh size(mm) |
Max feeding size(mm) |
capacity(m³/h) |
Motor power (kw) |
|
GTS820 |
Φ0.8×2 |
6-10 |
32 |
2-20 |
Mesh size×2.5 |
7-30 |
3 |
|
GTS830 |
Φ0.8×3 |
6-10 |
32 |
2-20 |
Mesh size×2.5 |
8-50 |
3 |
|
GTS1020 |
Φ1×2 |
6-10 |
25 |
2-20 |
Mesh size×2.5 |
10-60 |
4 |
|
GTS1030 |
Φ1×3 |
6-10 |
25 |
2-20 |
Mesh size×2.5 |
11-80 |
4 |
|
GTS1230 |
Φ1.2×3 |
6-10 |
20 |
2-20 |
Mesh size×2.5 |
12-100 |
5.5 |
|
GTS1240 |
Φ1.2×4 |
6-10 |
20 |
2-20 |
Mesh size×2.5 |
14-120 |
5.5 |
|
GTS1530 |
Φ1.5×3 |
6-10 |
17 |
2-20 |
Mesh size×2.5 |
16-120 |
5.5 |
|
GTS1540 |
Φ1.5×4 |
6-10 |
17 |
2-20 |
Mesh size×2.5 |
18-150 |
7.5 |
|
GTS1550 |
Φ1.5×5 |
6-10 |
17 |
2-20 |
Mesh size×2.5 |
20-180 |
11 |
|
GTS1560 |
Φ1.5×6 |
6-10 |
17 |
2-20 |
Mesh size×2.5 |
22-200 |
11 |
|
GTS1850 |
Φ1.8×5 |
6-10 |
14 |
2-20 |
Mesh size×2.5 |
24-220 |
15 |
|
GTS1860 |
Φ1.8×6 |
6-10 |
14 |
2-20 |
Mesh size×2.5 |
26-240 |
15 |
|
GTS2050 |
Φ2×5 |
6-10 |
12 |
2-20 |
Mesh size×2.5 |
50-600 |
22 |
|
GTS2080 |
Φ2×8 |
6-10 |
12 |
2-20 |
Mesh size×2.5 |
80-700 |
22 |
|
GTS2260 |
Φ2.2×6 |
6-10 |
10 |
2-20 |
Mesh size×2.5 |
100-800 |
30 |
|
GTS2280 |
Φ2.2×8 |
6-10 |
10 |
2-20 |
Mesh size×2.5 |
120-850 |
30 |
