Alluvial Gold Washing

In Alluvial Gold Washing projects, many mine owners fixate solely on the final "recovery mat," often overlooking the most critical first step: Pre-treatment.

If raw ore is not thoroughly washed and sized, gold gets carried away, wrapped inside mud balls. The industrial standard solution to this core problem is the Gold Trommel Screen. This article analyzes why the trommel is the indispensable "gatekeeper" of the processing plant.

Why is This Step Critical?

In placer mines, the gold grade is extremely low (often calculated in grams/ton), while the percentage of waste rock and sticky clay is huge. The primary task of Alluvial Gold Washing isn't just "selecting gold"-it is efficiently "discarding waste."

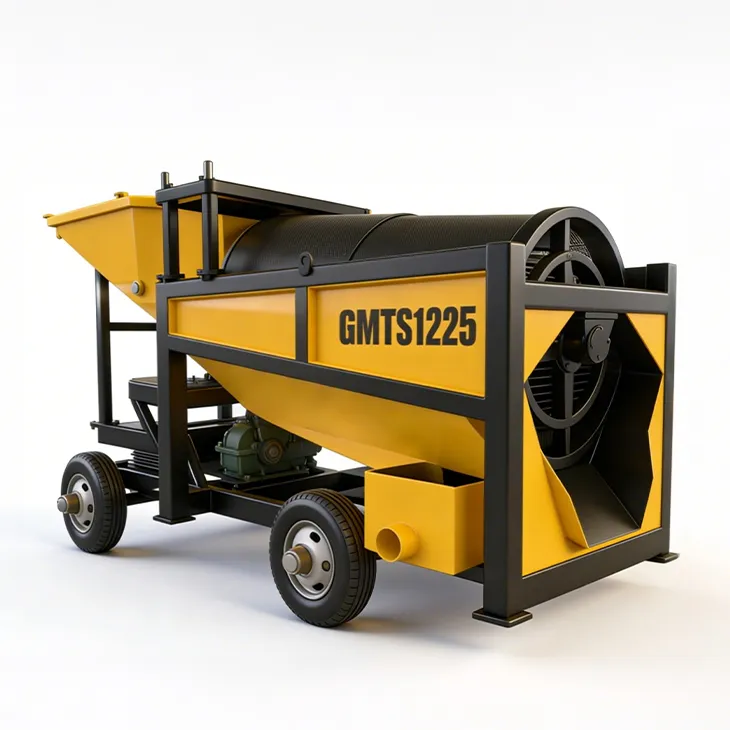

The Gold Trommel Screen acts like a giant industrial washing machine combined with a sieve. It handles the plant's toughest dirty work: rejecting useless boulders while retaining the gold-bearing sand.

Deep Dive: The Triple Function of the Trommel

Unlike other screening equipment, the trommel performs three physical operations simultaneously during rotation, which is the secret to its high efficiency:

1. Desliming & Scrubbing (Mud Separation)

This is the trommel's "ace card." Once raw ore enters the drum, it doesn't sit still; it is lifted and dropped as the drum rotates.

● The Physical Process: The violent collision and friction between rocks, combined with internal high-pressure water jets, forcibly break apart stubborn Clay.

● The Benefit: Only when clay is washed into a liquid slurry can "free gold" be liberated. Otherwise, clay acts as a "porter," carrying your gold straight into the tailings pile.

2. Particle Size Control (Sizing)

Downstream recovery units (like Centrifuges or Jigs) are highly sensitive to feed size. The trommel precisely cuts the material using specific screen mesh sizes (typically 6-10mm).

● Oversize: Waste rocks are discarded immediately, reducing the load on backend equipment by 60%-80%.

● Undersize: This "paydirt"-a slurry mixture of gold sand and water-is where the real value lies.

3. Steady Feeding (Flow Regulation)

Alluvial Gold Washing requires a stable flow. The trommel converts intermittent dumping from excavators into a continuous, uniform slurry flow for the downstream equipment. This prevents the recovery units from being "overfed" or "starved," both of which kill recovery rates.

Trommel vs. Vibrating Screen: Why the Former Wins

In the placer industry, the debate between using a Trommel or a Vibrating Screen never ends, but for most alluvial sites, the verdict is clear:

● Mud Resistance: When handling high-viscosity ore, vibrating screen meshes easily blind over, turning into a "slide board" where material just slides off. Trommels, relying on rotary centrifugal force and internal lifters, possess innate self-cleaning abilities.

● Ruggedness: Placer mines are often located in remote areas. Trommels have a simple mechanical structure with no complex exciters, making them extremely durable and cheap to maintain.

Conclusion

Do not expect downstream concentration equipment to compensate for upstream errors. In the process design of Alluvial Gold Washing, a properly configured Gold Trommel Screen is the cornerstone of recovery. It is responsible for "washing" the gold out of the dirt and "sieving" the rocks out of the gold.

Only when this step is executed correctly does your placer mine truly have a foundation for profitability.

Next Step

Is the clay content in your current mining site high? If needed, I can recommend specific Gold Trommel parameter configurations based on your throughput (tons/hour) and the maximum particle size of your raw ore.
