MSW Drum Screen
Product description
Zhengzhou Sinolion Machinery MSW drum screen is a new generation of screening equipment, mainly composed of inlet and outlet, motor, reducer, frame, drum device, etc., can be used in chemical, coking plant, mine, power plant, building materials, metallurgy and other industries. The drum device is mounted on the frame at an inclined Angle. The exterior is sealed with an airtight spacer to prevent contamination of the ring.
The characteristics of MSW drum screen:
Adopt special screen, high screening efficiency, long service life; The installation inclination Angle is small, the mesh is not easy to plug; Simple structure, easy maintenance; Smooth operation, low noise; Occupying a small space, easy to arrange the process.

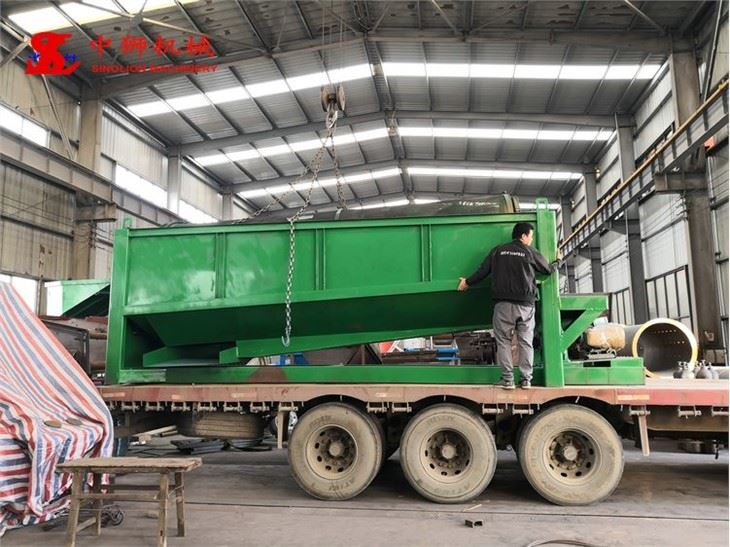

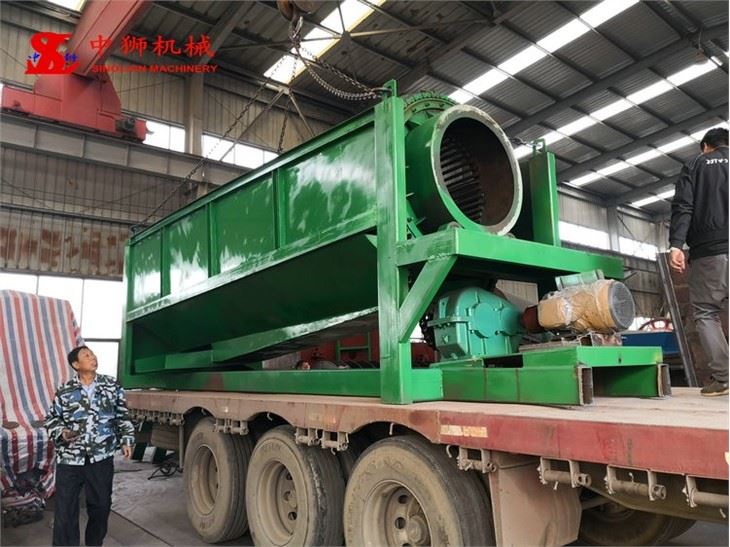

Pictures
Technical parameters
|
Model |
Capacity |
Power |
Screen |
Discharge Size |
Input Size |
|
|
(t/h) |
(kw) |
Diameter (mm) |
Length (mm) |
(mm) |
(mm) |
|
|
GTS1020 |
1-2 |
3.0 |
1000 |
2000 |
0~100 |
≤300 |
|
GTS1030 |
2-3 |
4.0 |
1000 |
3000 |
0~100 |
≤300 |
|
GTS1240 |
3-5 |
5.5 |
1200 |
4000 |
0~100 |
≤300 |
|
GTS1540 |
5-8 |
7.5 |
1500 |
4000 |
0~100 |
≤300 |
|
GTS1560 |
6-10 |
11 |
1500 |
6000 |
0~100 |
≤400 |
|
GTS2080 |
10-20 |
15 |
2000 |
8000 |
0~100 |
≤400 |
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of msw drum screen in China. Please feel free to buy high quality msw drum screen for sale here from our factory. Good service and reasonable price are available.
