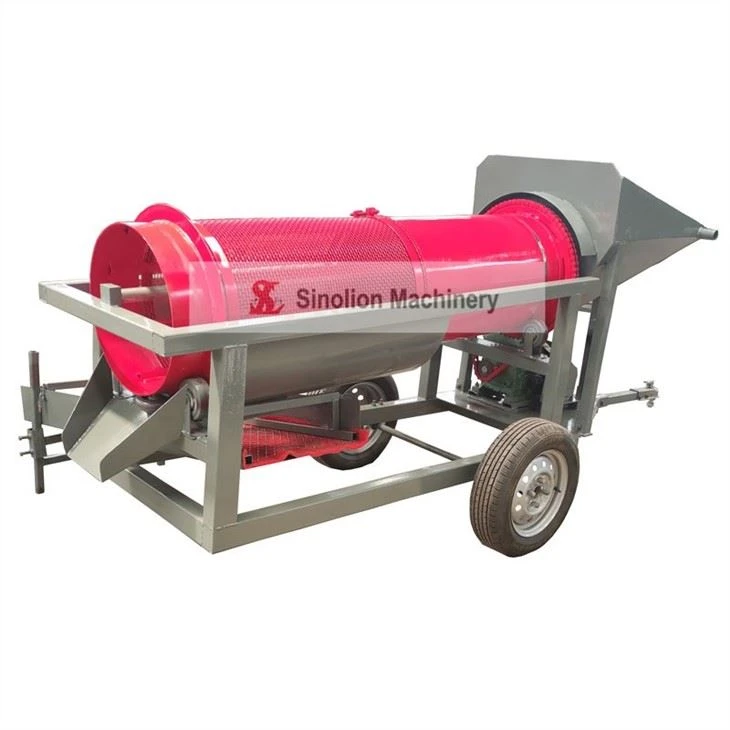

Trommel Gold Washing Plant With Concentrator
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of trommel gold washing plant with concentrator in China. Please feel free to buy high quality trommel gold washing plant with concentrator for sale here from our factory. Good service and reasonable price are available.
GOLD TROMMEL SCREEN STRUCTURE
Gold Mining Machine, also known as a rotary screen, a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries. It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Main Features
1.It is a highly economically viable option adequately suitable for small to large volume processing of materials.
2.The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.
3.The design has a end user flexibility that allows for screen replacements depending on mesh sizes
4.Multiple layers of screen to enhance the sifting process.
5.Rock Trommel features changeable screen plates so that worn out parts can be replaced.
6.Trommel Roller has high efficiency and a big capacity for different volumes of materials
7.The screen is uniquely designed to facilitate higher capacities, provide longer screen life and avoid material clogging.
2.Big parts packed by plastic membrane.
3.The whole machine is loaded in the container.
GOLD TROMMEL SCREEN CASE
TROMMEL SCREEN VIDEO
Hot Tags: trommel gold washing plant with concentrator, China, manufacturers, suppliers, factory, price, for sale, Manufacturer Direct Sales topsoil Trommel Screen, Firewood Trommel Screen, Composting Trommel Screen, Gold Mining Extraction Processing Plant, Small Scale 5 10Tons Gold Washing Machine, Branch Shredder
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
GMTS0520 | 5-10 | 3 | 500 | 2000 | 0-100 | ≤300 | 3390×1100×1640 |
GMTS1020 | 20-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GMTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×2500 |
GMTS1548 | 80-150 | 15 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
GMTS2060 | 200-350 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
