High Performance Trommel Screen

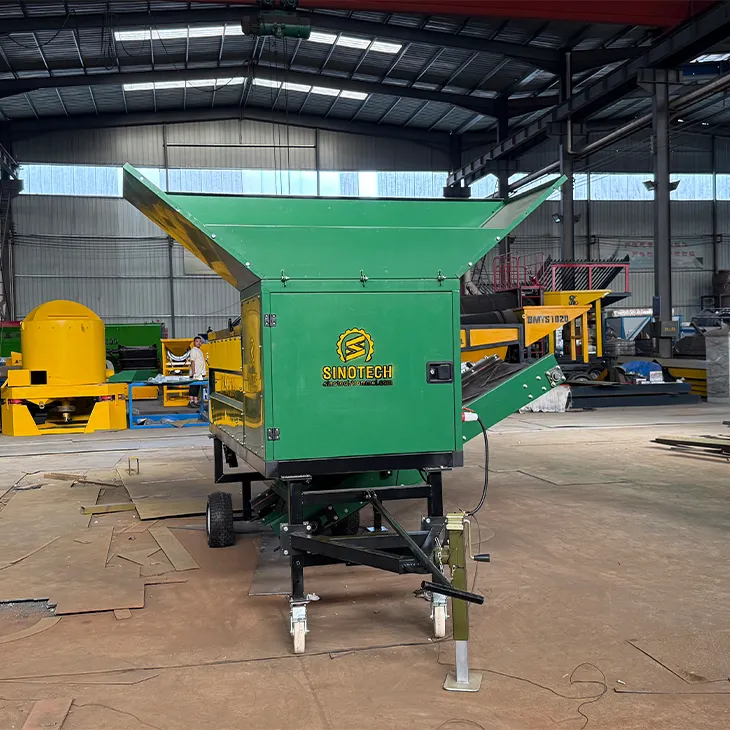

• The WTS0820 is the compact entry model of the WTS trommel screen series, engineered for contractors and small-to-medium producers who need reliable on-site material separation without the cost and footprint of a full stationary plant. Mounted on a towable chassis and ready to pair with a loader or excavator, it screens soil, sand, gravel, compost, wood chips and light demolition debris into clean, uniform fractions at the point of excavation - eliminating haulage to off-site processing.



• At its heart is an Ø800 mm, 2000 mm long rotating drum fabricated from heavy-gauge steel. Precision perforations let only the fraction you specify fall through, while internal lifters carry material up and release it in a controlled cascade. Drum speed is variable (16–22 r/min) and inclination adjusts from 0° to 4°, so operators can fine-tune retention time and throughput to match both the material and the target product - from dusty topsoil to wet, sticky clay. In its reference configuration the machine processes 177–707 ft³/h while weighing just 650 kg, which keeps it within reach of a standard wheeled loader or small excavator







• The WTS0820 separates material by size using continuous, gravity-assisted drum rotation. Unsorted feed enters the hopper at the elevated end of the machine, where the drum's rotary motion takes over: internal lifters raise the material and release it in a tumbling cascade, giving every particle repeated contact with the drum's perforations. Particles smaller than the opening fall through into the collection hopper or lower conveyor; oversized material is carried forward by the drum's adjustable 0–4° inclination and exits through the discharge gate. By controlling drum speed (16–22 r/min) and inclination, operators balance retention time against throughput, while the built-in brush keeps perforations clear in wet or fibrous conditions.







Investing in industrial sorting machinery requires clear justification in terms of return on investment (ROI). The WTS0820 delivers measurable advantages across four critical categories:



• High and Scalable Capacity

• With a processing range spanning from 177 to 707 cubic feet per hour ((ft³/h)), the WTS0820 easily adapts to both steady, low-speed refining and high-volume raw material surges. This scalable performance allows facilities to maintain constant processing speeds without overloading downstream equipment.



• Unmatched Customization and Clog Prevention

• Material screening often suffers when damp or fibrous feedstocks plug the screen mesh. The WTS0820 eliminates this bottleneck by integrating a variable speed control system, an adjustable inclination angle (0-4°), and a heavy-duty built-in cleaning brush system.The rotating brush continuously purges the screen openings from the outside, preventing blinding and ensuring uninterrupted material flow even when processing sticky wet soil or green waste.



• Rugged Durability and Structural Integrity

• Weighing up to 650 kg (1431.7 LB) in its full-featured configuration, the WTS0820 features a reinforced, stress-relieved steel chassis. The heavy steel drum resists warping under heavy impact loads, ensuring long-lasting structural alignment and performance in harsh, unmitigated outdoor environments.



• Low Maintenance and Reduced Downtime

• By prioritizing mechanical simplicity over overly complex linkages, the WTS0820 minimizes failure points. Access hatches are strategically placed to allow quick inspection of bearings, drive belts, and the drum itself. This straightforward design substantially reduces routine maintenance labor costs and prevents costly operational downtime.









The WTS0820 High Performance Trommel Screen offers a range of benefits to its users, including:



1. High capacity:

• The WTS0820 is capable of processing up to 15 cubic yards of material per hour, making it one of the most efficient screening machines in its class.



2. Customizable screening:

• With its variable speed control, adjustable brushes, and hydraulic folding conveyor, the WTS0820 is highly customizable to meet the needs of any screening application.



3. Low maintenance:

• The WTS0820 features a simple and easy-to-maintain design that minimizes downtime and reduces maintenance costs.



4. Durability:

• The WTS0820 is built to last, with a rugged steel frame and high-quality components that ensure long-lasting performance even in harsh environments.







The WTS0820 High Performance Trommel Screen is ideal for a variety of industries and applications, including:



1. Recycling:

• The WTS0820 is well suited for sorting and separating recyclable materials such as plastic, glass, and metal, making it an ideal choice for recycling operations.



2. Mining:

• The WTS0820 is capable of screening large volumes of raw material, making it an ideal choice for mining applications such as rock and gravel screening.



3. Construction:

• The WTS0820 can be used to screen construction and demolition waste, reducing the amount of material that needs to be hauled away and improving overall efficiency on the job site.



4. Waste management:

• The WTS0820 is capable of screening municipal solid waste, allowing for the separation of recyclable materials and reducing the amount of waste that needs to be landfilled.



5. Composting:

• The WTS0820 can be used to screen composting materials, ensuring that only the finest, high-quality composted material is produced.













The WTS0820 High Performance Trommel Screen is a versatile and efficient screening solution that is ideal for a wide range of applications. Its advanced features, customizable screening, and exceptional performance make it a popular choice for businesses in the recycling, mining, construction, waste management, and composting industries. With its low maintenance requirements, durability, and high capacity, the WTS0820 is a reliable and cost-effective investment for businesses looking to improve their screening efficiency and maximize their profits.
