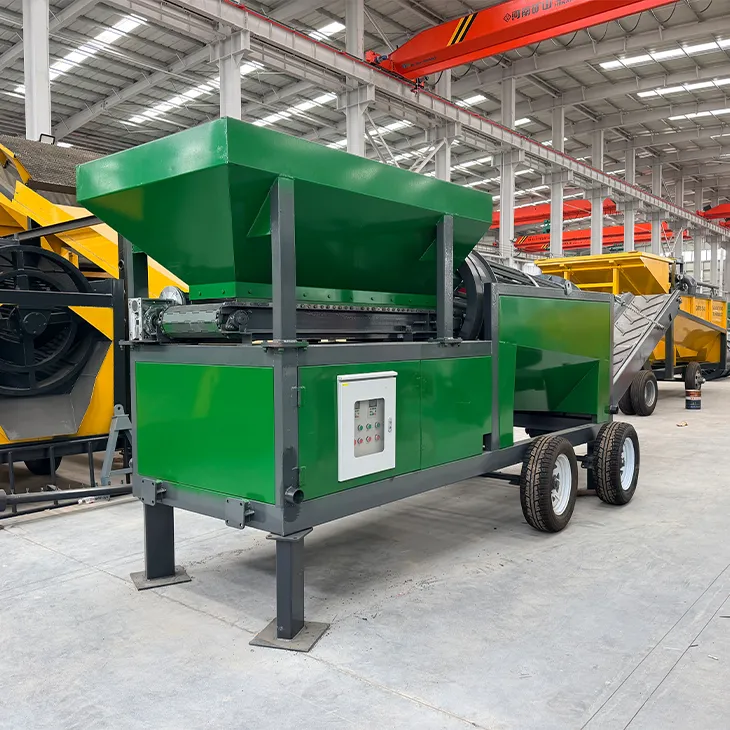

Firewood Wood Chips Trommel Screen







A firewood trommel screen is a drum-type screening machine that separates sawdust, wood chips and firewood by size. Material fed from a wood chipper or sawdust shredder enters a slowly rotating, slightly tilted drum; fines drop through the mesh while larger pieces travel to the drum end and discharge. Because it delivers consistently sized, clean firewood, it is also called a sawdust screening machine or wood chip screener, and it works as the final filtration step in a wood chip production line.



The drum is built from wire mesh, angle steel or round steel and rotates around a horizontal or slightly inclined axis, driven by an electric motor through a chain, gear or friction drive. Material is lifted and dropped inside the drum as it moves forward - this tumbling action boosts screening efficiency and effectively prevents mesh clogging, keeping the line running without constant manual cleaning.



Get My Factory Quote







Below are the standard models. Custom drum diameters, mesh sizes and mobile chassis configurations are available on request.



Model	Trommel Diameter (mm)	Trommel Length (mm)	Production range (m³/h)	Capacity Reference Range (ft³/h)	Transport Dimensions (Excluding Towing Parts) (mm)	Working Dimensions (Excluding Towing Parts) (mm)	Net Weight (kg)	Net Weight (LB)	Trommel Speed (r/min)	Trommel Inclination Angle Adjustable Range	Brush Included (Yes/No)
FTS 0818	∅800	1800	5-20	177-707	2600*1040*1400	2630*1400*2410	700	1541.85022	16-22	0-10°	No
FTS 1230	∅1200	3000	30-70	1060-2473	5580*1520*2055	5580*2020*2395	2250	4955.947137	16-22	0-10°	No



All models feature a two-section drum: Section 1 (25 mm) removes dust and fines; Section 2 (60 mm) separates firelighters from full-size logs.





1. Firewood production lines. The most common use. Feed finished firewood through the trommel to remove sawdust, bark and splinters so customers receive clean, uniform logs. The separated fines and firelighters become sellable by-products: kiln fuel, mulch blending, or firelighters for existing customers.



2. Sawmills & wood chip plants. Screen chips after shredding to guarantee a consistent chip size for downstream processing or packing.



3. Biomass & pellet preparation. Remove oversize and undersize fractions before drying or pelletizing to protect downstream equipment.



4. Mulch & landscaping producers. Classify shredded bark and wood waste into saleable grades.



5. Small & large firewood processors. Driven by an electric motor, the trommel pairs with both compact firewood processors and high-capacity lines, so you can integrate it into an existing firewood business to clean up the finished product.









1. What is the price of a firewood trommel screen?

• Price depends on drum size, capacity and configuration (mobile/stationary, motor power). Contact us for a quote - we reply within 24 hours.



2. What is the minimum order quantity (MOQ)?

• MOQ is [1 set]. [Sample orders / trial machines: not supported.]



3. What is the lead time?

• Standard models ship within [15–30 days] after deposit; customized units take [30–45 days] depending on configuration.



4. Can you customize the trommel screen?

• Yes - drum diameter and length, mesh size, motor voltage, mobile chassis and inlet height can all be customized to match your production line.



5. What is the warranty?

• [12 months] warranty on the machine; wear parts (screen mesh, bearings) are [not covered].



6. What payment methods do you accept?

• T/T, [L/C / Western Union / Alibaba Trade Assurance]. Deposit [30%] and balance [before shipment].



7. How is the machine shipped and packaged?

• Export-standard packing (plastic film + steel frame or wooden case). Shipped by [container], FOB.



8. What power supply does it need?

• Electric motor drive, available in [220 V / 380 V / 415 V], [50 Hz / 60 Hz]. Confirm your local voltage when ordering.



9. Can it work with my existing firewood processor?

• Yes - the trommel integrates with compact and high-capacity firewood processors and is typically placed after the processor to screen the finished product. [List compatible models or: Send us your machine specs.]



10. Do you provide installation and after-sales support?

• Yes - user manual, installation video and remote guidance included.













Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of firewood wood chips trommel screen in China. Please feel free to buy high quality firewood wood chips trommel screen for sale here from our factory. Good service and reasonable price are available.
