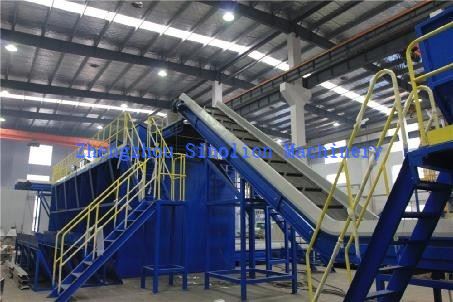

MSW Waste Sorting Trommel Machine

Description:

The trommel screen (also known as the trommel screen) is a kind of equipment that performs classification processing according to the size of the particles of the material. Because the process is simple, it is commonly used in the classification and screening of medium and fine-grained materials to improve the quality of the materials. According to different classification requirements, the drum screen is generally multi-sectioned from fine to coarse. The cylinder is placed obliquely, and the cylinder is covered by a dust-proof seal. There is almost no dust and noise pollution during the production process. It is used for product classification in mines, building materials, highways, power, chemicals, refractory materials, sandstone materials and other occupations, as well as the selection of coal, coke, white ash, placer gold and other viscous materials to make the product structure more even to meet production needs .

Scope of application of drum sieve sand machine:

(1) In the quarry, it is used to classify large and small stones, and to separate soil and stone powder.

(2) Separate from sand and rock in sand and rock yard.

(3) The coal industry is used for the separation of lump coal and pulverized coal and coal washing (a component of coal washing machinery)

(4) In the chemical industry, the mineral processing industry is used to classify large and small lumps and separate powdery materials.

(5) Screening of finished products in the granulation of organic fertilizer and compound fertilizer.

Composition of drum screening machine:

The drum screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet. The roller device is installed on the frame obliquely. The motor is connected with the roller device through a coupling through a reducer, and drives the roller device to rotate around its axis. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, so that the qualified material (product under the screen) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (the screen The upper product) is discharged through the discharge port at the end of the drum. Due to the overturning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being blocked. The principle and structure of drum screen sand machine, drum screen machine and drum screen are almost the same, but there are differences in people's understanding and name of it.

Case：

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of msw waste sorting trommel machine in China. Please feel free to buy high quality msw waste sorting trommel machine for sale here from our factory. Good service and reasonable price are available.
