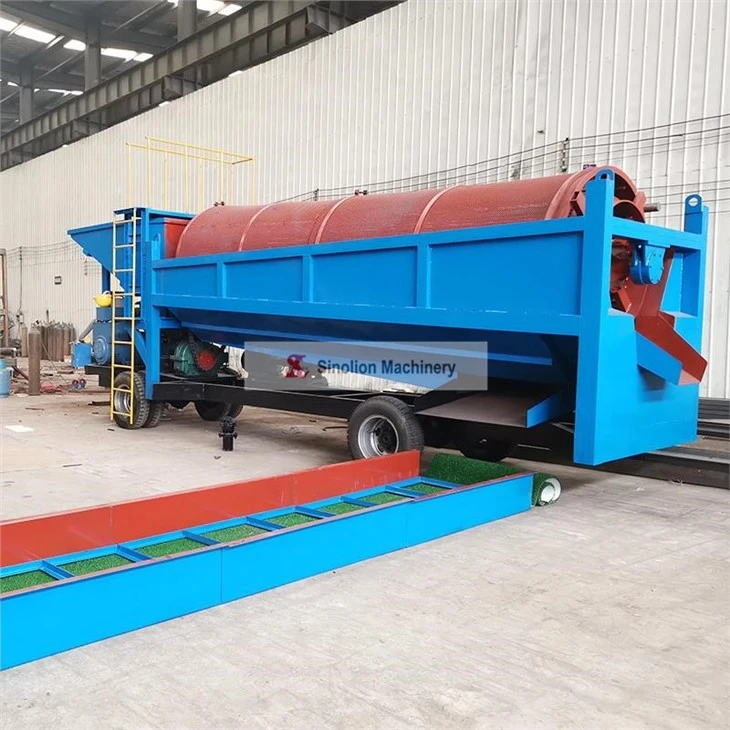

Mobile Gold Trommel Washing Plant

The mobile gold trommel washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa,North Korea, Tanzania, Ghana etc.

The main structure of the gold trommel washing plant is a screening cylinder, which is composed of several circular meshes and also inclined with the ground; Outside is sealed by the sealing guard to prevent environmental pollution. Through variable speed deceleration system, the screening cylinder is rotated at a certain rotation speed, and the material is separated from the top to the bottom through the screening cylinder, the fine material is discharged from the lower part of the front end of the screening cylinder.

Mobile gold trommel washing plant is usually used at the primary separation period of placer gold mining so as to washing and screening the gold ore. The upper sizes out are always reckoned as unuseful materials. The bottom sizes which contain the gold are usually processed by centrifugal concentrator or gold sluice box continuously to upgrade the gold ore. The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.

This product is our heavy-duty mobile gold trommel washing plant, the processing capacity can reach up to 500 tons per hour according to the demand. The machine is equipped with a water pipe that can be connected to a water pump to flush water during the working process of the drum. The machine is equipped with a manual operation platform, which can observe the working conditions of the materials in real time. The machine drum is designed with two layers of screens, the outside is a layer of manganese wire braided mesh, the conventional screen aperture is designed to be 5 mm, and the inside is a layer of round steel screen with a gap of 30 mm. There are two discharge designed on the machine, gold materials smaller than 5 mm will be discharged to the gold chute for collection through one sluice, 5-30 mm materials will be discharged through the other outlet, and then the larger Waste material is discharged through the end of the drum.

Working Principle:

The raw material is put into the sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen surface.

Main Features:

1. Configured for economical & efficient classification, screening and grading.

2. Heavy duty trommel drum with lifters at the front to facilitate material break up.

3. Screen replaceable for different mesh sizes.

4. Multiple screen size.

5. Easily changed screen plates.

6. Unique screen design, result in higher capacities, longer screen life and no material clogging.

7. Heavy duty feed hopper and extension.

8. One stop gold mining solution.

The gold trommel washing plant provide a simple, efficient and economical solution to upgrade various materials and optimize subsequent recycling process steps. This screening method helps to reduce operating and investment costs and improve product quality, while allowing rapid and high-volume processing. Our trommel screens are made of high quality materials and are designed for high performance, high productivity, low operating costs and low maintenance. This material is then passed to downstream process equipment, which can take the form of centrifugal concentrators, jigging machine, shaking table, etc.

The gold sluice box cooperates with the gold trommel screen for rough selection of gold.

1. Reasonable structural design and convenient transportation;

2. High degree of automation, multi-machine linkage operation, daily processing gold volume up to 2000 cubic meters.

3. It is suitable for various areas, and the washing and separation effect is excellent in the muddy area of the mine; it is also suitable for processing minerals that may contain gravel and boulders;

4. It is suitable for recovering gold bars, gold nuggets, gold flakes and gold grains;

5. High washing degree and recovery rate.

We are a manufacturer specializing in the manufacture of mineral processing equipment, looking forward to any of your requirements and providing you with a one-stop solution.
