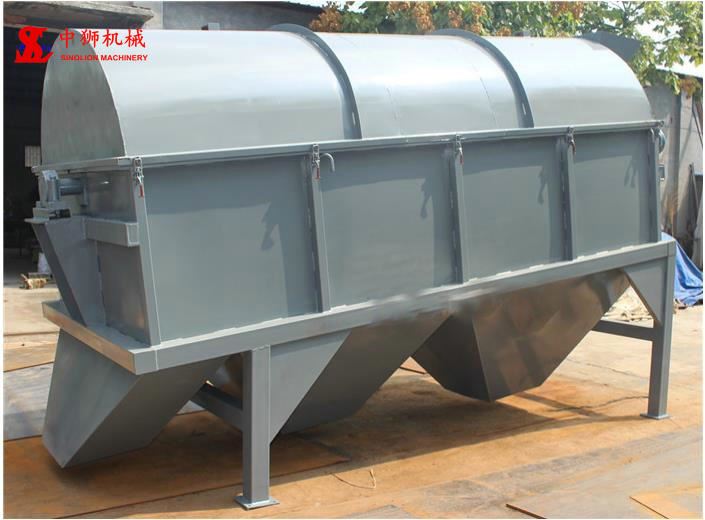

Sawdust Wood Trommel

Sawdust wood trommel is formerly known as drum wood chip screening machine, also called wood drum sieve, replaced after mesh sieve with wood or sawdust sawdust crusher work out, so can also be called sawdust screening machine, is used in secondary screening of wood chip production line equipment, wood filtering effect in the wood chip production line, wood chip to achieve unified specification as possible, It is a new type of wood chip screen after the round vibration screen.

Pictures

The overall design of drum sieve adopts the layered isolation type automatic screening system, which fundamentally solves the problem of large power consumption of wood screen, fast wear of screen mesh, difficult to replace screen mesh and many other users are difficult to solve. Roller wood screen has the characteristics of high yield, small loss, low screen material cost, simple installation, convenient maintenance and so on.

This sawdust wood trommel machine manufacturer adopts the first sieve coarse material (aniseed) after the screening of fine material (small material) grading design principle, so that the order of the screen greatly extended. Because of the basic principle of sawdust drum sieve material, not only make the material in the sieve network time is greatly shortened, and can make the material under the screen to the lower flow, the sieve material with the tilt of the screen rolling forward, so as to avoid the wood screen is easy to pile up, easy to clip material in the feeding area stay time too long. The specifications of the trommel sawdust screen mesh with the wood chip roller screening are 1cm, 2cm, 3cm, 4cm, 5cm, 6cm, 8cm, 10cm and other specifications of the screen mesh, the net is more than 10cm, a total of five grades of material. Users can choose to replace the specifications of the screen mesh according to their own material conditions. The replacement of the screen mesh is relatively easy. Just remove the screen layering and install the new screen tightening screws.

The design specification of the feed port of the sawdust wood trommel screen is φ400mm and has a certain inclination. The user can use artificial feeding or automatic feeding system. The height of the feed port from the ground is 1650mm (the center line of the feed port), the discharge port is below, and the general specifications of the wood chip are between 1-5 cm.

Wood chip roller discharging using manual loading, the outlet can be fixed packaging bag does not fall off, but the bag can be closed when the discharge port, so that there is a small amount of artificial replacement, mobile material bag time. The height of the outlet from the ground is 500-600mm. When the user adopts the automatic discharging system, the spacing of the outlet of this machine is 400mm, which can meet the installation position of the general user's automatic discharging system. The machine adopts gearbox type deceleration system, the design speed is reasonable, the linear speed of the outer circle is 84 meters/min, the inner circle is 57 meters/min. If the customer wants to adjust the speed when screening material, just replace a pulley to achieve the purpose of speed regulation.

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of sawdust wood trommel in China. Please feel free to buy high quality sawdust wood trommel for sale here from our factory. Good service and reasonable price are available.
