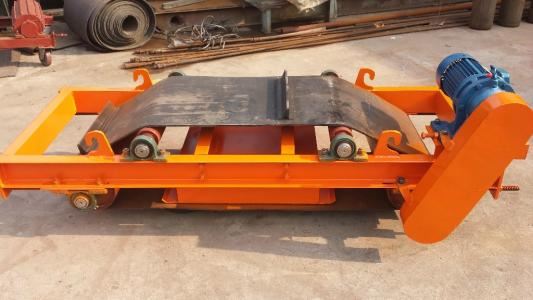

Permanent Iron Separator
Product Introduction
RCYD (C) series Permanent Iron Separator is composed of high-performance permanent magnetic core, iron-disposable belt, reduction motor, frame, roller and other parts, and is used with various conveyors. Its main structure is composed of high-performance permanent magnetic core, abandoned iron belt, deceleration motor, frame, roller, etc. This separator is suitable for iron removal in various industries, and can process continuously broken and discarded iron. It is widely used in coal mines, yards, thermal power generation, cement, building materials and other industries.
Also, we produce this Permanent Iron Separator of many models to better satisfy customers' different needs, so you only need to tell us your specific requirements and we will recommend you the most suitable model or customize it for you. This Trommel Screener can be your most practical and economical choice!
Features:
1. Permanent Iron Separator adopts high coercive force and high strength rare earth NdFeB to form a strong magnetic core with high strength magnetic field.
2. The structure is simple, easy to maintain, and the parts are simplified, and the maintenance cost is reduced.
3. The high-strength ring-shaped one-piece rubber belt is used for the automatic iron-unloading rubber belt.
4. It can support the installation bracket, which can not only meet different installation methods, but also protect the leather belt from external damage.
5. The most suitable size and performance can be tailored according to the users' on-site space and requirements.
Technical Parameters:
Model | Usable belt width (mm) | Standard erection height (mm)
| Intensity ≥mT | Materials thickness ≤mm | Power kw | Belt speed ≤m/s | Working | Weight kg |
RCYD(C)-5 | 500 | 150 | 70 | 80 | 1.5 | 2.5 | constinous | 750 |
RCYD(C)-6 | 600 | 175 | 70 | 120 | 1.5 | 920 | ||
RCYD(C)-6.5 | 650 | 200 | 70 | 150 | 1.5 | 1200 | ||
RCYD(C)-8 | 800 | 250 | 70 | 200 | 2.2 | 1400 | ||
RCYD(C)-10 | 1000 | 300 | 70 | 250 | 3.0 | 2120 | ||
RCYD(C)-12 | 1200 | 350 | 70 | 300 | 4.0 | 3350 | ||
RCYD(C)-14 | 1400 | 400 | 70 | 350 | 4.0 | 4450 | ||
RCYD(C)-16 | 1600 | 450 | 70 | 400 | 5.5 | 6200 | ||
RCYD(C)-18 | 1800 | 500 | 70 | 450 | 5.5 | 8100 | ||
RCYD(C)-20 | 2000 | 550 | 70 | 500 | 7.5 | 9700 |
Conditions of Use:
1. The altitude does not exceed 2000 meters.
2. The ambient air temperature is not higher than 40 ℃ and not lower than -25 ℃.
3. In an environment free of explosion hazards and containing no corrosive gases.
4. The relative humidity of the surrounding environment is not more than 90% (when the temperature is 25 ℃).
5. Indoor and outdoor can be used.
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of permanent iron separator in China. Please feel free to buy high quality permanent iron separator for sale here from our factory. Good service and reasonable price are available.
