Clay Alluvial Gold Diamond Mining

Name: China Clay Alluvial Gold Diamond Mining Manufacturers, Suppliers, Factory - Good Price - Sinolion Machinery
Brand: Sinolion
SKU: 218620148

Rotary scrubber application: Tantalite mine, Gravel, clay gold mine, sticky mine, stone. Mining clay gold processing machine rotary scrubber. It is a mineral washing machine, designed to break up alluvial, gravels, clays and sand. It can accept material up to 230mm. It is able to de-slime of the sand and stone, the drum inside is equipped with single or doublelayer round screen can get 2 to 3 different size of sand stone products, To which is applied pre-concentration of the materials contain mud, to promote the beneficiation index in the later steps and it is widely used to the washing of manganese, iron, limestone, tungstenore, silica and so on. The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading. Features Designed to break up alluvial gravels, clays and sand High capacity and high power scrubbing The long drum of the scrubber retains material for longer, more vigorous washing for complete separation One high output electrical motor driving a gear system providing efficient torque Adjustable rotary speed The water with high pressure flushed the inwall of drum Can accept material up to 230mm Mechanical sealing of inlet chute minimal spillage when over feeding Drive loads absorbed within the drive frame and pivoting drive frame design Foundations only have to support vertical load and are not critical for alignment ie minimal cost Shell design less mass than conventional roller supported units installation craneage requirement reduced

Send Inquiry

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of clay alluvial gold diamond mining in China. Please feel free to buy high quality clay alluvial gold diamond mining for sale here from our factory. Good service and reasonable price are available.

Products Description

Our factory professional produce different type trommel screen and rotary scrubber and other type mining equipments.
The details of our trommel screen and rotary scrubber as below,

1). Trommel Screen
Working Principle:

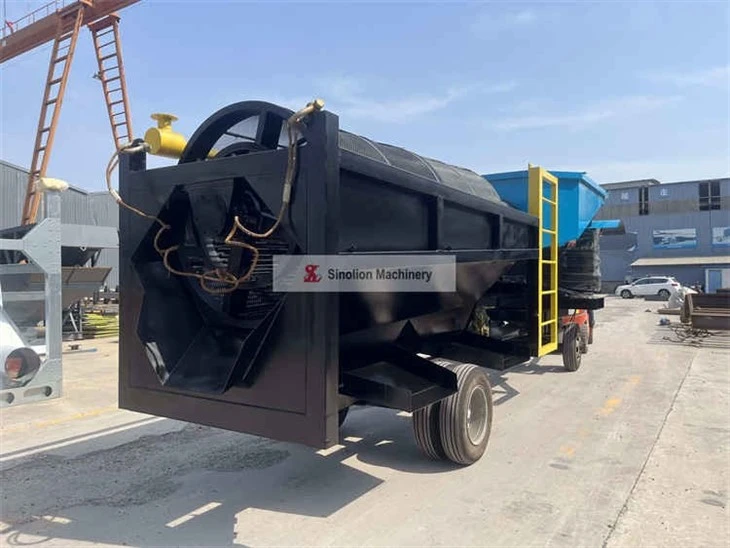

Material feed into the hopper by excavator,high pressure water released and wash the mineral,then,mineral by forward into the drum.It is lifted up by the rotation and aerated as it fall back down.This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the final mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. China supplier mobile screen river gold washing machine trommel

product-750-562

---Advantages---
♦Includes water pump, water pipe, diesel engine / electric motor, wheel, can be easy movable.Mobile with wheels, can free transport/move to other lace when finish the job. It is suit to small scale / large mine processing.
♦ Diesel engine / electric motor, can work in no power field.
♦ Bigger hopper,single / double layer screen designed.
♦ Water pump with water pipe release high pressure water.
♦ It is popular in African, Asian, South American due to its easy to move and easy to operate.
♦ It is low cost, miner just cost a little budget to buy one. Many miner came to our factory to buy it for their alluvial gold, river sand mineral, diamond mining.

product-750-450

Packaging and Delivery

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. Motor is packed with steel case or free fumigation wooden case. Control panel is packed with wooden case. Loading container in factory.

product-750-562

Hot Tags: clay alluvial gold diamond mining, China, manufacturers, suppliers, factory, price, for sale, Cheap Firewood Trommel Screen, Iron Remover, Mobile Mini Small Gold Washing plant, Compost Fertilizer Sieving Machine, Low cost firewood trommel screen, Gold Mining Extraction Processing Plant

Model	Capacity (t/h)	Capacity (t/h)	Diameter (mm)	Length (mm)	Discharge (mm)	Input (mm)	Dimension ((mm)
GMTS0519	5-10	5-10	500	1910	0-100	≤300	3000x1000x1800
GMTS1020	10-30	10-30	1000	2000	0-100	≤300	3390×1400×2140
GMTS1225	30-50	30-50	1200	2500	0-100	≤300	4146×1600×2680
GMTS1548	80-150	80-150	1500	4800	0-100	≤400	8460×2300×2500
GMTS1848	100-200	100-200	1800	4800	0-100	≤400	8460×2300×2700
GMTS2060	200-350	200-350	2000	6000	0-100	≤400	9680×2300x3420
