Household Garbage Screening Treatment Equipment
Description:

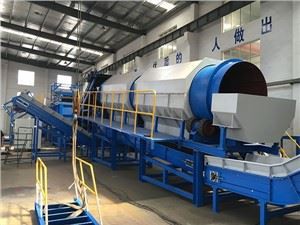

The trommel screen is mainly used to separate the finished product and the returned material, and can also realize the classification of the finished product, so that the finished product is evenly classified. The combined screen is easy to maintain and replace. The machine has simple structure, convenient operation and stable operation. The roller device is installed on the frame obliquely. The motor is connected with the roller device through a coupling through a reducer, and drives the roller device to rotate around its axis. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, so that the qualified materials (products under the screen) are discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified materials (the screen The upper product) is discharged through the discharge port at the end of the drum. Due to the overturning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being blocked. The principle and structure of drum screen sand machine, drum screen machine and drum screen are almost the same, but there are differences in people's understanding and name of it.
Packaging & Shipping
Case：
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of household garbage screening treatment equipment in China. Please feel free to buy high quality household garbage screening treatment equipment for sale here from our factory. Good service and reasonable price are available.
Hot Tags: household garbage screening treatment equipment, China, manufacturers, suppliers, factory, price, for sale, Paper Baling Machine, Municipal Solid Waste Drum Screen, Eddy Current Separator, Household Solid Waste Management, Waste Trommel Screen, Hydraulic Baler Press
Model | Drum size（m） | Drum inclination （°） | Drum speed (r/min) | Mesh size（mm） | Max feeding size（mm） | capacity（m³/h） | Motor power （kw） |
GTS820 | Φ0.8×2 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 7-30 | 3 |
GTS830 | Φ0.8×3 | 6-10 | 32 | 2-20 | Mesh size×2.5 | 8-50 | 3 |
GTS1020 | Φ1×2 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 10-60 | 4 |
GTS1030 | Φ1×3 | 6-10 | 25 | 2-20 | Mesh size×2.5 | 11-80 | 4 |
GTS1230 | Φ1.2×3 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 12-100 | 5.5 |
GTS1240 | Φ1.2×4 | 6-10 | 20 | 2-20 | Mesh size×2.5 | 14-120 | 5.5 |
GTS1530 | Φ1.5×3 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 16-120 | 5.5 |
GTS1540 | Φ1.5×4 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 18-150 | 7.5 |
GTS1550 | Φ1.5×5 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 20-180 | 11 |
GTS1560 | Φ1.5×6 | 6-10 | 17 | 2-20 | Mesh size×2.5 | 22-200 | 11 |
GTS1850 | Φ1.8×5 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 24-220 | 15 |
GTS1860 | Φ1.8×6 | 6-10 | 14 | 2-20 | Mesh size×2.5 | 26-240 | 15 |
GTS2050 | Φ2×5 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 50-600 | 22 |
GTS2080 | Φ2×8 | 6-10 | 12 | 2-20 | Mesh size×2.5 | 80-700 | 22 |
GTS2260 | Φ2.2×6 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 100-800 | 30 |
GTS2280 | Φ2.2×8 | 6-10 | 10 | 2-20 | Mesh size×2.5 | 120-850 | 30 |
