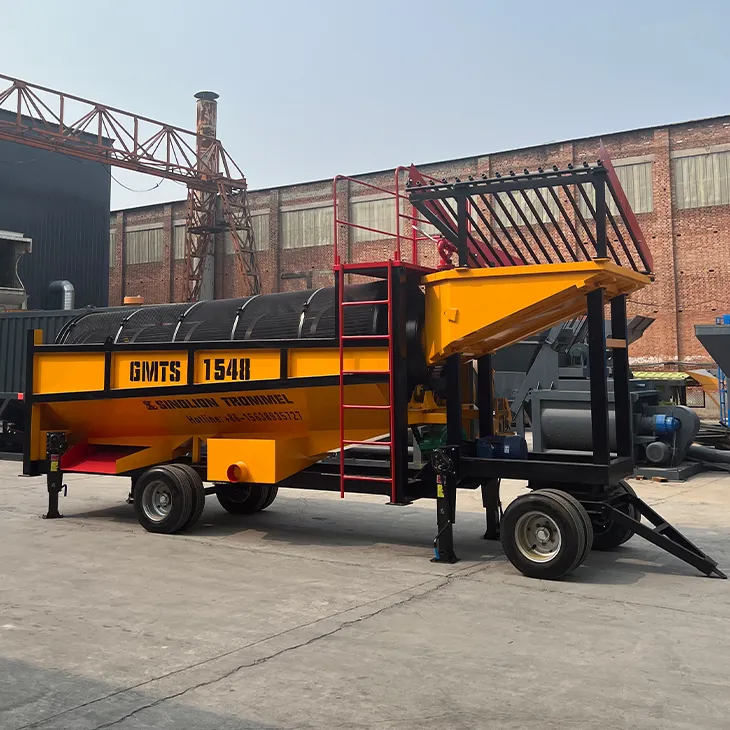

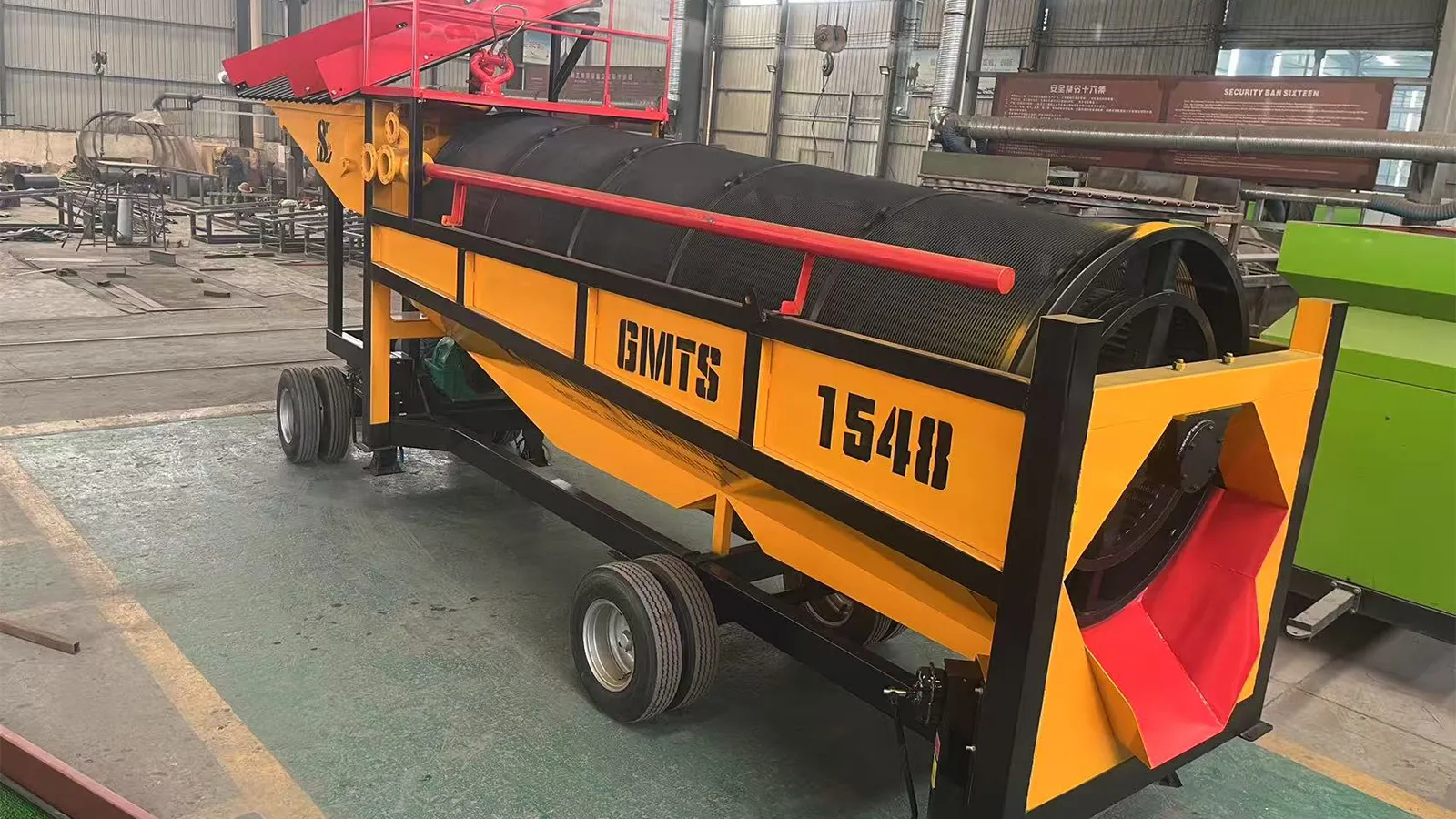

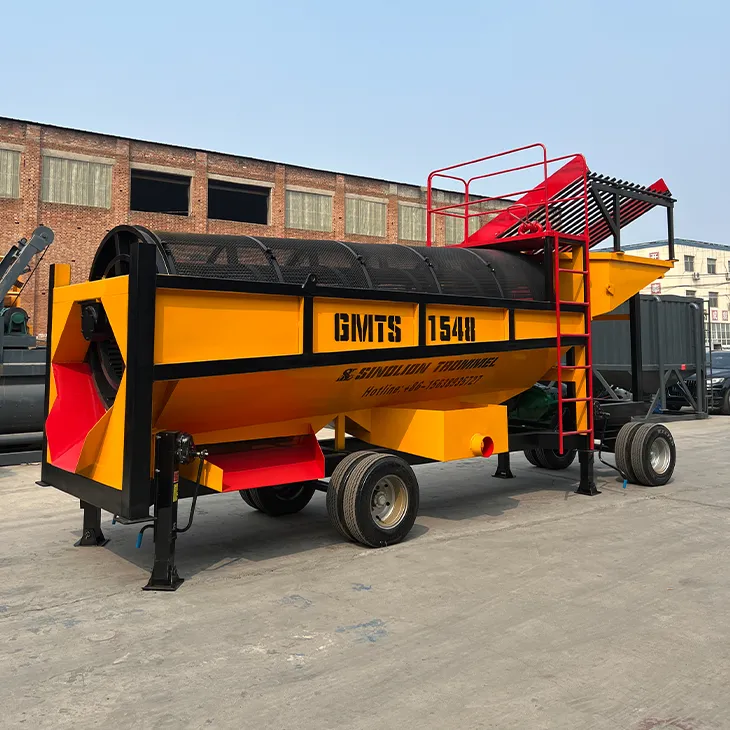

Ore Mobile Gold Washing Plant
An ore mobile gold washing plant from Sinolion is a self-contained processing line - grizzly hopper, scrubber trommel, water system and gold recovery unit mounted on one towable chassis. It is built for alluvial and placer gold operations where the deposit moves with the mining face, and where clay-bound ore must be broken down before fine gold can be liberated. Instead of trucking paydirt to a fixed plant, you move the plant to the ore and start recovering gold the same day it arrives on site.
Who this plant is for - and how it differs from a plain mobile trommel
A standard mobile gold trommel screen washes and sizes material, but its recovery capacity ends where the screen does. The Sinolion ore mobile gold washing plant goes one step further: the scrubber section is engineered to disintegrate sticky, clay-heavy ore, and the integrated recovery module (sluice box with gold matting, or centrifugal concentrator, or both in series) captures fine gold that a screen-only setup would wash straight into the tailings. If your feed is decomposed ore, cemented gravel or weathered alluvial with high clay content, this is the configuration to specify - not a bare trommel.
Ore Mobile Gold Washing Plant - Standard Configurations
Every plant is sized to the ore test before we quote.
| Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Power (kw) | Overall Dimension L*W*H (mm) | Weight (kg) |
| GMTS0519 | 500 | 1910 | 5-10 | 1.5 | 3000x1000x1800 | 550 |
| GMTS1020 | 1000 | 2000 | 10-30 | 4 | 3390x1400x2140 | 1500 |
| GMTS1225 | 1200 | 2500 | 30-50 | 5.5 | 4146x1600x2680 | 2200 |
| GMTS1548 | 2000 | 4800 | 80-150 | 11 | 8460x2300x2500 | 6800 |
| GMTS1848 | 2000 | 4800 | 150-200 | 15 | 9860x2300x3420 | 7200 |
Configuration notes: capacity is quoted for a specific feed size and clay content - we run a washability test on your material sample and confirm recovery expectations before manufacturing. Options include diesel or electric drive, wheeled or skid-mounted chassis, extra scrubbing length for high-clay ore, and a secondary concentrator stage for fine or flaky gold.
How the Plant Works in Four Steps
1. Feeding.
- An excavator or loader dumps raw ore into the grizzly hopper; oversized boulders are rejected before they reach the drum.
2. Scrubbing and washing.
- High-pressure water jets and the rotating scrubber section break down clay and wash the ore, freeing trapped gold particles.
3. Screening and waste discharge.
- The trommel sizes the material; barren oversize rock is discharged via chute or conveyor to a stockpile or backfilled pit.
4. Gold recovery.
- Undersize slurry flows into the sluice box or concentrator, where gold is captured and barren sand exits as tailings.
Why Clay-Heavy Ore Needs a Scrubber, Not Just a Screen
Clay is the main reason alluvial projects underperform. If the ore is not fully disintegrated, gold stays locked inside clay balls and slides over the sluice matting without ever touching it. Sinolion plants solve this with an extended scrubbing section and correctly tuned water pressure and retention time, so that by the time material reaches the screen mesh the clay has been reduced to slurry and the gold is free to be caught. The same design also handles cemented gravel and weathered ore that would choke a conventional washing screen.
Applications This Plant Is Configured For
- Alluvial and placer gold deposits, including river terrace and valley gravels
- Clay-rich weathered ore and decomposed rock
- Re-working old tailings and dump material for residual gold
- Small to mid-size operations (50 t/h) that need to relocate between pits or seasonal deposits
Frequently Asked Questions
Q: Which model fits a 50 t/h alluvial project?
A: Send us your target throughput, feed size and clay content - we match the plant from the GMTS series and confirm the recovery circuit (sluice / concentrator / both). Every quotation is based on an ore assessment, not a generic datasheet.
Q: Can the ore mobile gold washing plant handle sticky clay?
A: Yes - that is the main reason to choose this plant over a screen-only trommel. The scrubber section is sized for your clay content, and we can extend the scrubbing length or add a second drum stage for extreme cases.
Q: How long does it take to set up on site?
A: The plant arrives pre-piped and pre-wired on its own chassis. With an excavator and a water source, crews typically have it operational within hours, and it can be towed to a new pit without dismantling.
Q: What is the price and delivery time?
A: Price depends on model, recovery configuration and power option - contact us with your requirements for a factory-direct quotation and current lead time. Machines are fully test-run in our workshop before container loading.
Need an ore mobile gold washing plant sized for your deposit? Send us your ore details and target capacity - our engineers will confirm the model, recovery circuit and budget within 24 hours.
