Small 5-10 Tons Alluvial Gold Washing Plant

Small 5-10 Tons Alluvial Gold Washing Plant

Name: China Small 5-10 Tons Alluvial Gold Washing Plant Manufacturers, Suppliers, Factory - Good Price - Sinolion Machinery
Brand: Sinolion
SKU: 213035560

Send Inquiry

Products Description

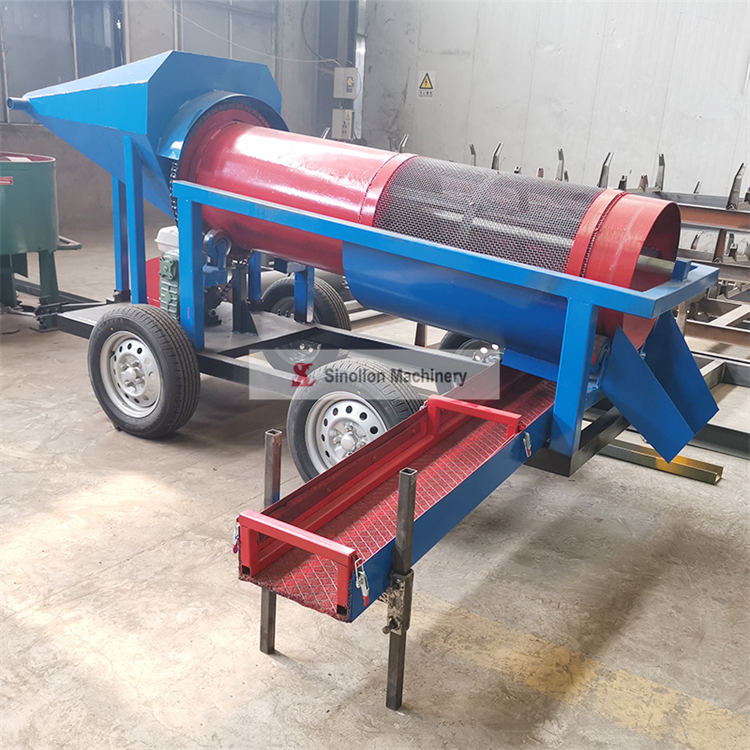

product-750-750

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment

Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.

working principle

product-750-450

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.

1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The
Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The
Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The
Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.

Products show

product-800-800 product-750-562 product-750-750

send out goods

All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.
Control panel is packed with wooden case.
Loading container in factory.

product-1200-1200

product-1200-694

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of small 5-10 tons alluvial gold washing plant in China. Please feel free to buy high quality small 5-10 tons alluvial gold washing plant for sale here from our factory. Good service and reasonable price are available.

Hot Tags: small 5-10 tons alluvial gold washing plant, China, manufacturers, suppliers, factory, price, for sale, Gold Mining Trommel, High Efficiency Mobile Trommel Screen Best Price Hot Sale, Mobile Gold Panning Machine, gold placer wash plant with trommel, Convenient Firewood Trommel Screen, gold panning trommel

Product Name	Gold Trommel Screen
Model	GMTS0519	GMTS1020	GMTS1225	GMTS1548	GMTS1848
Capacity (t/h)	5-10	10-30	30-50	80-150	100-200
Power(kw)	1.5	4	5.5	11	15
Diameter(mm)	500	1000	1200	1500	1800
Length(mm)	1910	2000	2500	4800	4800
