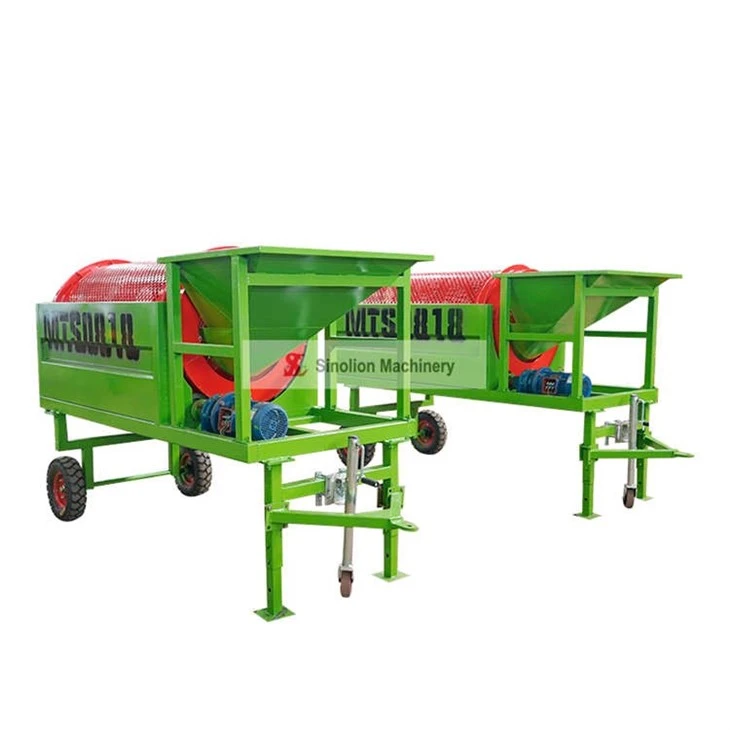

Mts0818 Compost Trommel Screen
video
Mts0818 Compost Trommel Screen

Mts0818 Compost Trommel Screen

Mts0818 compost trommel screen has wide range of sizes and capacities,Mining Machinery Rotating Vibrating Drum Sieve is a mechanical screening machine used to separate materials. Trommel screen consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover. When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Send Inquiry

trommel screen

compost trommel

Advantages and Features
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5. Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6. Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.
product-750-552
Characteristic
1. Wide material adaptability:
It is used for screening of various materials. No matter it is inferior coal, slime, soot or other materials, it can be screened smoothly.
2. High screening efficiency:
The equipment can be equipped with comb cleaning mechanism. In the screening process, the materials entering the screening cylinder can be screened according to impurities and dirt to improve the screening efficiency of the equipment.
3. The screening composition is large and easy to enlarge:
In the same size, the circular area is larger than other shapes, so the effective screening area is large, so that the material can fully contact the screening, so that the screening component per unit time is large.
4. Good working environment:
The whole screening cylinder can be sealed with a sealed isolation cover to completely eliminate dust and block splashing during screening and avoid pollution to the working environment.

product-800-500

Application range


Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

product-587-368

rotary screen

soil trommel screen

topsoil trommel

compost screen

rotary sieve

waste trommel screen

product-750-1088

rotary trommel sifter



topsoil trommel

compost trommel

drum screen

trommel sifter

firewood trommel





Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of mts0818 compost trommel screen in China. Please feel free to buy high quality mts0818 compost trommel screen for sale here from our factory. Good service and reasonable price are available.

Hot Tags: mts0818 compost trommel screen, China, manufacturers, suppliers, factory, price, for sale, Cheap Firewood Trommel Screen, Iron Remover, Mobile Drum Screen For Screening Compost Topsoil, Heavy Duty Portable Soil Trommel Screen, mini gold trommel for sale, Mobile Type Gold Rotary Trommel

Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)

motor power

(KW)

Weight
(Kg)
Dimensions
(L*W*H)
800 1800 ≤15 2.4 650 3.15*1.1*1.65
1000 2200 ≤30 8.2 2750 4.3*1.9*2.45
1200 3000 ≤60 10.6 3210 5.4*2.1*2.7
1500 5000 ≤90 20 7900 9.4*2.2*2.9
