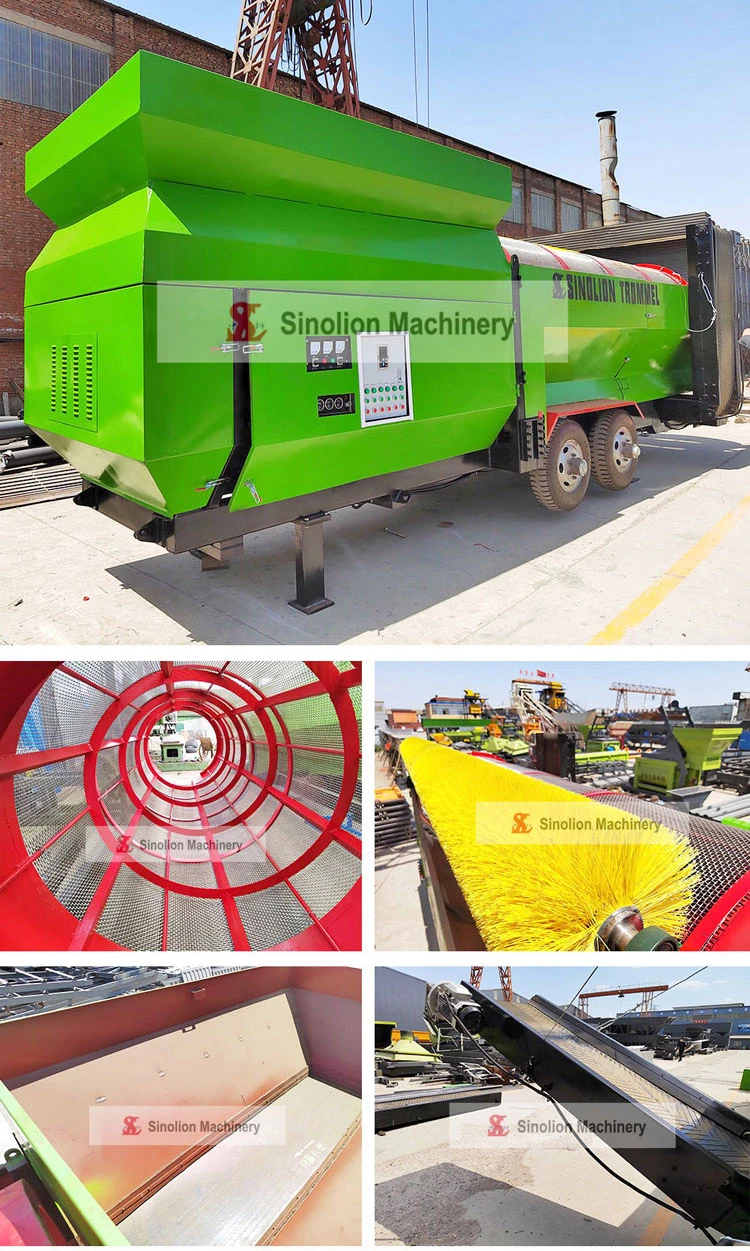

Mobile Hydraulic Trommel Screen

Product description

The trommel screen (stone sieve) is a kind of trommel screening equipment, which is often used in the screening of dry powder or granular materials in metallurgy, building materials, chemical industry, grain, fertilizer and other industries. It can also be used for granular materials. Screening of wet materials. The rotary axis of the trommel (stone screen machine) is usually installed at a small inclination angle (4-7 degrees). The material to be screened is loaded into the cylinder from one end of the cylinder. Due to the rotation of the cylinder, the material slides along the inner wall of the cylinder, and the fine-grained material falls into the return hopper through the sieve holes on the working surface, while the coarse-grained material flows from the cylinder. the other end of the discharge. The rotating speed of the trommel (stone screening machine) is very low, the work is stable, there is no unbalanced working part, and the hydraulic shaftless trommel screen can be installed on the upper floor of the building. There are three types of support methods for the drum screen drum: roller support, bearing support and hybrid support. The drum screen can be driven by gears and reducers, or by center drive and roller drive.

Features:

1. The sieve hole is not easy to be blocked.

2. Smooth operation and low noise.

3. Simple structure and convenient maintenance.

4. The screening drum can be closed, and it is easy to seal and collect dust.

5. The whole machine has high reliability and less one-time investment.

6. Adopt special screen mesh, screening efficiency G, shaftless trommel screen garbage disposal, long service life.

The trommel screen is mainly composed of a motor, a reducer, a trommel device, a frame, a sealing cover, and an inlet and outlet. The roller device is installed obliquely on the frame. The motor is connected with the roller device through the reducer through the coupling, and the roller device is driven to rotate around its axis. After the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned over and rolled, so that the qualified material (under sieve product) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (screened product) is discharged. The upper product) is discharged through the discharge port at the end of the drum. Due to the overturning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being blocked. The principle and structure of the trommel sand screening machine, the trommel screening machine and the trommel screen are almost the same, and there are differences in people's understanding and name of it.

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of mobile hydraulic trommel screen in China. Please feel free to buy high quality mobile hydraulic trommel screen for sale here from our factory. Good service and reasonable price are available.
