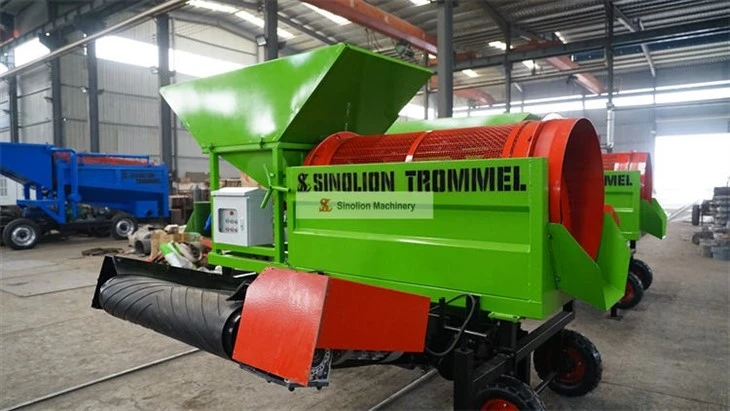

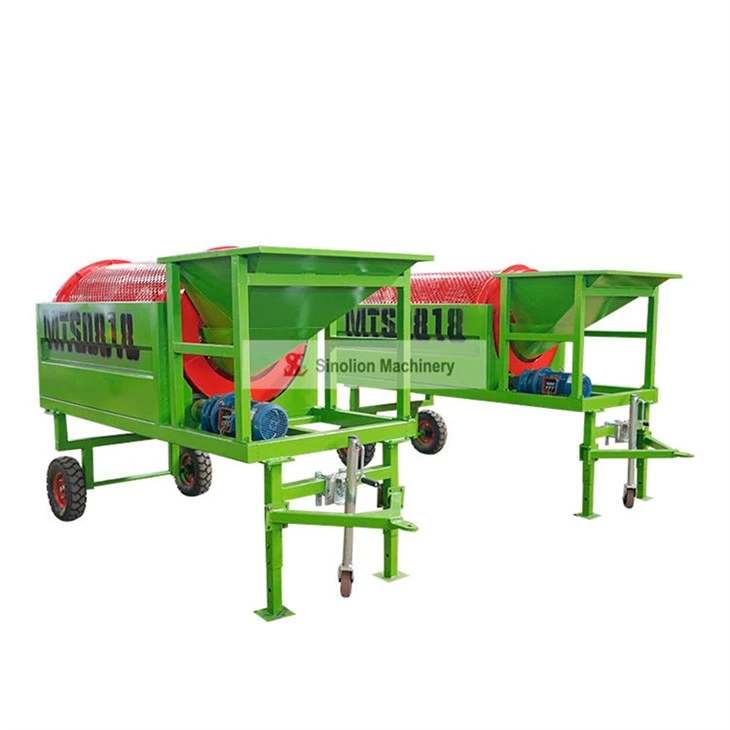

Compound Fertilizer Screening Machine

The rotary screening machine is a new type of self-cleaning screen special equipment after the electric vibrating screener and the ordinary network type roller screen produced by the domestic companies.It is widely applicable to sieving of various solid materials with particle size less than 300mm.It has many characteristics such as high screening efficiency,low noise,small amount of dust,long service life,less maintenance,and its screening capacity is 1t/h-20t/h.

Performance characteristics

1.High screening efficiency.Because the equipment has a plate cleaning mechanism, it can never block the screen, thus improving the screening efficiency of the equipment.

2.Good working environment.The entire screening mechanism is designed in the sealed dust cover, completely eliminating the dust flying phenomenon in the screening and improving the working environment.

3.Low noise of the equipment.During operation, the noise generated by the material and the rotating screen is completely isolated by the sealed dust cover, which reduces equipment noise.

5.Long service life.The equipment screen its cross-sectional area is much larger than the screen cross-sectional area of other separation equipment screens.

Working principle

The self-clearing cage drum screening machine performs reasonable rotation of the equipment center separation cylinder through the gearbox type deceleration system. The center separation cylinder is a screen composed of several annular flat steel rings. The center separation cylinder is installed with the ground plane. In the inclined state, the material enters the cylinder net from the upper end of the central separation cylinder during the working process. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of the annular flat steel, and the coarse material is separated from the lower end of the separation cylinder. Drain into the pulverizer. The device is provided with a plate type automatic cleaning mechanism. During the separation process, the screen body is continuously "combed" by the cleaning mechanism through the relative movement of the cleaning mechanism and the sieve body, so that the sieve body is always cleaned throughout the working process. It will not affect the screening efficiency due to the clogging of the screen.

If you are interested in Small mobile sand trommel screen for sale, welcome to reach us here and visit our factory.

Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;

Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.

After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.

SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.

SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.

Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.

Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of compound fertilizer screening machine in China. Please feel free to buy high quality compound fertilizer screening machine for sale here from our factory. Good service and reasonable price are available.
