Alluvial Gold Diamond Mining Washing Machine
Products Description

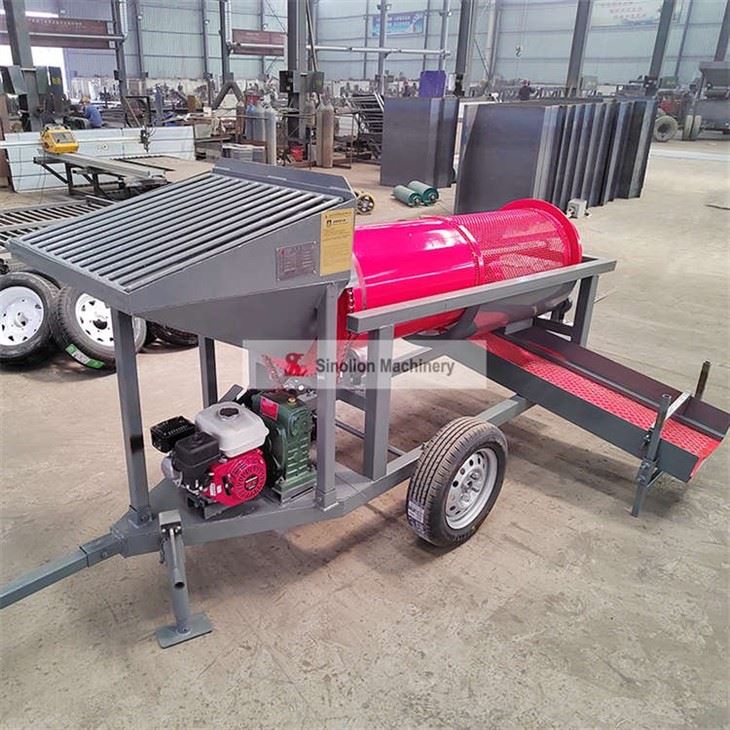

Alluvial Gold Diamond Mining Washing Machine
Our factory professional produce different type trommel screen and rotary scrubber and other type mining equipments.
The details of our trommel screen and rotary scrubber as below.
1). Alluvial Gold Diamond Mining Washing Machine
Working Principle:
Material feed into the hopper by excavator,high pressure water released and wash the mineral,then,mineral by forward into the drum.It is lifted up by the rotation and aerated as it fall back down.This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the final mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. China supplier mobile screen river gold washing machine trommel
Alluvial Gold Diamond Mining Washing Machine advantages
Includes water pump, water pipe, diesel engine / electric motor, wheel, can be easy movable.Mobile with wheels, can free transport/move to other lace when finish the job. It is suit to small scale / large mine processing.
♦ Diesel engine / electric motor, can work in no power field.
♦ Bigger hopper,single / double layer screen designed.
♦ Water pump with water pipe release high pressure water.
♦ It is popular in African, Asian, South American due to its easy to move and easy to operate.
♦ It is low cost, miner just cost a little budget to buy one. Many miner came to our factory to buy it for their alluvial gold, river sand mineral, diamond mining.
Zhengzhou Sinolion Machinery Co., Ltd. is one of the most credible manufacturers and suppliers of alluvial gold diamond mining washing machine in China. Please feel free to buy high quality alluvial gold diamond mining washing machine for sale here from our factory. Good service and reasonable price are available.
Hot Tags: alluvial gold diamond mining washing machine, China, manufacturers, suppliers, factory, price, for sale, Heavy Duty Compost Drum Sieve, gold trommel, gold washing machine, High Efficiency Mobile Trommel Screen Best Price Hot Sale, Convenient Firewood Trommel Screen, Compost Screen
|
Model |
Capacity (t/h) |
Capacity (t/h) |
Diameter (mm) |
Length (mm) |
Discharge (mm) |
Input (mm) |
Dimension ((mm) |
|
GMTS0519 |
5-10 |
5-10 |
500 |
1910 |
0-100 |
≤300 |
3000x1000x1800 |
|
GMTS1020 |
10-30 |
10-30 |
1000 |
2000 |
0-100 |
≤300 |
3390×1400×2140 |
|
GMTS1225 |
30-50 |
30-50 |
1200 |
2500 |
0-100 |
≤300 |
4146×1600×2680 |
|
GMTS1548 |
80-150 |
80-150 |
1500 |
4800 |
0-100 |
≤400 |
8460×2300×2500 |
|
GMTS1848 |
100-200 |
100-200 |
1800 |
4800 |
0-100 |
≤400 |
8460×2300×2700 |
|
GMTS2060 |
200-350 |
200-350 |
2000 |
6000 |
0-100 |
≤400 |
9680×2300x3420 |
